金属のタイプ: | アルミニウム | 原産地: | 中国(本土) | 銘柄: | Derock | モデル番号: | YLSDP02-05 | 出現: | 骨董品 | タイプ: | 他の家具 | 材料: | 金属 | 折られる: | いいえ |
包装
包装: | カートン |
Specifications :
1) Thrust up to 6000N
2) 12V / 24V DC input voltage
3) Min Installation Dimension : Stroke + 147mm
4) Standard protection class, IP44
5) High-strength plastic housing protecting motor and gears
6) Black plastic parts and anodized aluminium profile
7) Noise level, 50dB, actuator not loaded.
8) Elegant and compact design with small installation dimensions
9) Colour, black plastic parts and natural anodiz ed Aluminium profile.
10) Duty cycle, Max 10% or 2 minutes continuous use followed by 18 minutes not in use

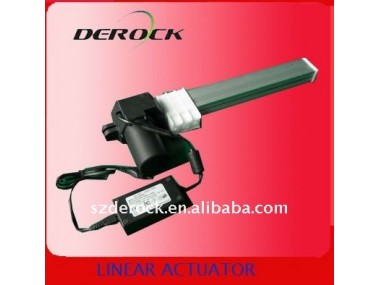

Description :
This type linear actuators allow you to screw the sliding block to your device giving flexibility and can also come complete ready to plug in and play out of the control box , include hand controller and power supply .
1.The handset ylsdp02-05 could control one linear actuator.
2.The stroke of the ylsdp02-05can design as customer’s requirement.
3.This complete set could be used in the leisure chair, function chair, function sofa, medical bed, automatic doors, automatic windows, smoke windows, other drive systems.
4.It could be changed for any parts by customers need.
