| 電球及び管: | 省エネ | 原産地: | 中国(本土) | 適用: | ハイウェー | 銘柄: | legine | モデル番号: | LNE-L | 電源: | 太陽 | ランプのかさ材料: | 強くされたガラス |
包装
| 包装: | 紙梱包で送料燻蒸polywood パレット 。 868 ピース/gp 62 ピース/パレット 372 ピース/gp 62 ピース/パレット |
Detailed Product Description

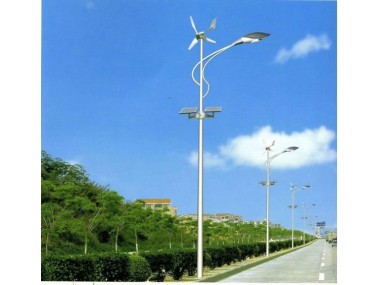

Wind & Solar Hybrid Light (LNE-S 120W) are able to generate power from solar in the day time and power from wind 24/7. They are very cost effective and simple to install. It is ideal for street lighting, sidewalk lighting, jogging and bike path lighting, farm & ranch lighting, campus lighting...
Specifications
| 120W Wind-Solar Hybrid Street Light | |
| Wind Turbine | 400W 24V, 3-phase AC permanent-magnet generator, 3-blade |
| Solar Panel | 2pcs 160Wp 35.5V; high-efficiency monocrystalline PV panel |
| LED Street Lamp | 120W DC24V, superbright white light; luminance 110Lm/W |
| Controller | 400w+320w wind-solar hybrid input, DC24V output; MPPT mode, light/timeintelligent control, various protections; LCD display; automatic brake anddump load |
| Battery | 2pcs 12V200AH; solar power storage type lead-acid battery, fully sealed,deep cycle free maintenance type |
| Battery Box | PVC material, underground-buried type, waterproof and heat-dissipative;including PVC cable tube |
| Working Time | 12 hours/day (6hrs full power + 6hrs half power lighting mode), batterycapacity for backup of 3 continuous windless or non-sunshine days. |
| Suggestion: | It's suggested to install this type for 10m high pole, road width within 20m |
Applications
* Street Lighting
* Park Lighting
* Roadway Lighting
* Fence Lighting
* Pathway Lighting
* Campus Lighting
* Ramp Lighting
* Boat Dock Lighting
* Sidewalk Lighting
* Remote Area Lighting
* Farm & Ranch Lighting
* Military base Lighting
* Wildlife Area Lighting
* Jogging and Bike Path Lighting
Standard Features
• Solar panel: over 25 years of power generation capacity, with a 5-year warranty
• LED light: CREE LEDs provide super-bright light from little power, need simple thermal management, and last up to 50,000 hours, with a 2-year warranty. LED wattage is equivalent to approximately half the wattage of high pressure sodium light.
• Controller: over 8 years of typical operating life, with a 2-year warranty, automatic operation from dusk to dawn or timed ON/OFF operation
• Pole: up to 25 years of long life time
• Battery: 5 ~ 7 years of maximum life, with a 2-year warranty
Benefits
• No line voltage, trenching, or metering
• No power outages
• Battery backup for cloudy or rainy days
• Distributed light and power - no single point of failure for enhanced security
• Easy to install with quick connect plugs - less than 1 hour
• No scheduled maintenance for up to 5 years
• No cost of replacing concrete, asphalt or landscaping
• No cost of transformers or meters to be added for electric service
• Qualify for savings from various state and federal taxes and incentives
• No monthly electric bills
• Controlled charging to prolong battery service life
• Long-life PV modules with more than 25 years of power generation capacity
• Environmentally friendly - 100% powered by the sun, solar panels reduce fossil fuel consumption, eliminating pollution
• Self-contained solution - Light on/off controlled by automatic daylight sensing or hour preset, no running or maintenance cost
• Better light source - LED lights feature cool white light without flickering and higher brightness than sodium lights
• Safe 12 volt/24 volt circuit, no risk of electric shock
