| 原産地: | 中国(本土) | 銘柄: | ligine | モデル番号: | LNE156 | サイズ: | 1650*992*50ミリメートル | 最高。 力: | 240 | 材料: | 多結晶性ケイ素 | 細胞の数: | 60 |
包装
| 包装: | 紙梱包で送料燻蒸polywood パレット 。 868 ピース/gp 62 ピース/パレット 372 ピース/gp 62 ピース/パレット |
This product is suitable for domestic, agricultural livestock, border posts and other places without electricity

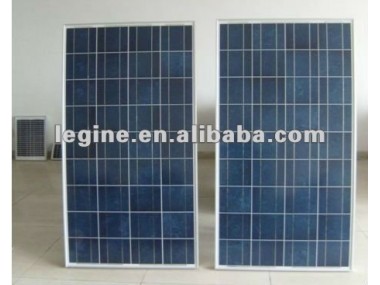

240W polycrystalline silicon solar panel
Detailed Product Description
1. TUV,CE,ISO2. 16.6% efficiency3. complete value chain (capacity:300MW/year)
Features:
1) Use of premium quality raw material from leading world-wide suppliers
2) Strict quality control and power classification of modules
3) Ready to use with junction box, cabling and connectors
4) Be resistant to atmospheric exposure and effects of delamination
Specifications:
1) Peak power (Wp): 240Wp
2) Max. power voltage (Vmp): 31.15V
3) Max. power current (Imp): 7.79A
4) Open circuit voltage (Voc): 37.66V
5) Short circuit current (Isc): 8.15A
6) Max. system voltage: DC 1000V
7) Dimensions: 1650*992*50mm
Other type
| Type | 285P | 240P | 215P |
| Pmax | 285W | 240W | 215W |
| Voc | 46.05V | 37.66V | 34.00V |
| Isc | 8.15A | 8.15A | 8.15A |
| Vmp | 36.15V | 31.15V | 27.01V |
| Imp | 7.79A | 7.79A | 7.79A |
| Practical module effcience | 16.60% | 16.90% | 15.80% |
| Weight | 23.5kg | 20kg | 18.5kg |
| Cells | 72pcs | 60pcs | 54pcs |
| Dimension | 1956*992*50mm | 1650*992*50mm | 1484*992*50mm |
| Maximum system voltage | DC1000V | ||
| Tolerance | ±3% | ||
| Fuse rating | 15A | ||
| Cell type | 156*156mm poly-crystalline cells | ||
| Maximum surface load capacity | test uo to2,400Pa according to IEC61215 | ||
| NOCT | 47±3°C | ||
| Operating temperature | -40 to 85°C | ||
