| 原産地: | 中国(本土) | 銘柄: | dayear | モデル番号: | DY-040350X | 入力: | 90V-265Vac | 電源: | 1ワット- 5ワット | 出力電圧: | 2ボルトの17ボルト | 出力電流: | 350ma | サイズ: | 23*16*13ミリメートル | 色: | 黒、白 |
包装
| 包装: | opp袋、 カートン。 |

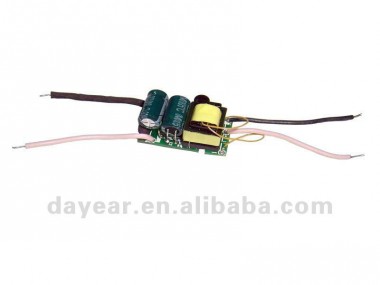

1W 3W 5W built-in LED Driver Bulb tube panel LED lighting
| Product Specitications: | |
| Power | 1w-5w |
| Input Voltage | 90V~265Vac 50/60HZ |
| Output Voltage | 2V-17V |
| Output Current | 350mA |
| Conversion Efficiency | ≥88% |
| IP Level | 67 |
| Safety Protection | Short cricuit, Open circuit, Over load, Over voltage Protection |
| Outline Dimension | 23*16*13mm |
| Operation Env.Temp.Ta | -20~+50°C |
| Raise Temperature | ≤10°C |
| Storage Temperature | -30~+80°C |
| Approval | CE,ROHS,EMC,TUV ,UL |
Features :
Constant current design
Universal AC input / Full range
Epoxy encapsulated with IP67 level
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Over load / Over voltage
Fully isolated plastic case
Cooling by free air convection
100% full load burn-in test
Low cost, high reliabilityg
Suitable for LED lighting and moving sign applications
3 years warranty
Our Serivce :
1.Your enquire related to our prodcuts will be reply within 24 hours
2.Well-trainded and experience technology staffs to slove all your question in detail
3.OEM and ODM accepted since our company have over 10 years experence
4.Sample can be offered to your evaluation
5.Your ideas of design and all your private information in our company will be protected well
