| 原産地: | 中国(本土) | 銘柄: | dayear | モデル番号: | Dy-30090x-1 | 入力: | 100v-240vac | パワー: | 32ワット | 出力電圧: | 24v-30v | 出力電流: | 900ma | サイズ: | 145*56*33mm | 色: | 白、 黒 |
包装
| 包装: | opp袋、 カートン。 |

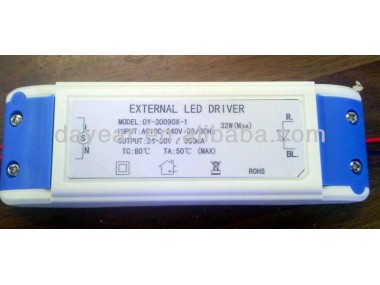

32w LED Driver tube panel led lighting
| Product Specitications: | |
| Product Model | DY-TD3X1W01A |
| Input Voltage | 100V~240Vac 50/60HZ |
| Output Voltage | 24V-30V |
| Output Current | 900mA |
| Conversion Efficiency | ≥88% |
| IP Level | 67 |
| Safety Protection | Short cricuit, Open circuit, Over load Over voltage Protection |
| Outline Dimension L*W*H(mm) | 145*56*33mm |
| Operation Env.Temp.Ta | -20~+50°C |
| Raise Temperature | ≤10°C |
| Storage Temperature | -30~+80°C |
| Approval | CE,ROHS,EMC,TUV ,UL |
Features :
Constant current design
Universal AC input / Full range
Epoxy encapsulated with IP67 level
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Over load / Over voltage
Fully isolated plastic case
Cooling by free air convection
100% full load burn-in test
Low cost, high reliabilityg
Suitable for LED lighting and moving sign applications
3 years warranty
