| モデル番号: | Ar-60e | タイプ: | ケーブルの身長計超音波 | 水平測定範囲: | 3-18m | 解像度の範囲: | 10m未満: 5mm10m以上: 10mm | 測定精度: | 0.5パーセント±2d | 最小ギャップは、 配線間の: | 150mm | ユニット: | Ft/インチ/メートル( 距離)、 °f/°c( 温度) | 動作温度範囲: | -10°c- 40°c | 動作電圧: | 1×9v6f22電池( 付属品) | 寸法: | 75×200mm72× | バッテリ寿命: | 20h( 連続使用) |
包装
| 包装: | 衝撃の吸収性の堅い携帯用ケース |
This Ultrasonic Cable Height Meter is very convenient to use and very easy to operate as well, a circuit maintenance can make measurement of cable height and wire to wire distance anytime and anywher without the need to touch the electric high cable. It has Horizontal Bracket that can be used for horizontal distance measurement which eliminates narrow space interference and enhances measuring accuracy. Measures cable height as well as indoor distance or other distance between objects.
It can measure a total of 6 cables height in 1 time measurement, giving you the height of each cable. It can also measure the distance between cables. It can measure either while you are holding the meter or while the meter is on a flat ground.
It comes with automatic temperature compensation, automatically compensates or adjust the temperature value according to ambient environment after every power on to ensure accurate measuring on different temperature conditions all the time.
How it Works:
This product uses ultrasonic principle to measure cable height. When measuring, it transmits ultrasonic signal by 15° angle towards the wires and measuring the time it takes to pick-up the echo from the signal.
Typical Measurement Applications: Electrical, Forestry, Industrial, Mining, Overhead cables, Tree branches, Elevator shafts, Depth of Wells.Used in electric power, telecommunications transmission cable measurement, electric locomotive power cable and trolley buses, large industrial enterprise, power transmission and transformation transmission cable, wire measurement,in construction site, tower level and height measurement.
Features
- Measure height of up to 6 cables at a time
- Wide measuring range: 3~23m (height) 3~18m (plane)
- Convenient to take measurement & easy to read results
- Easy to aim at measuring position
- Suitable to different cables

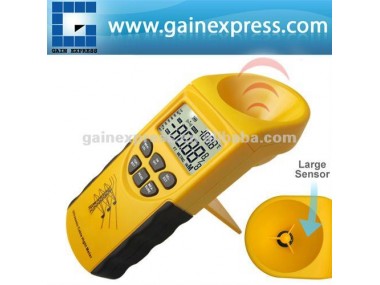

- Large measuring sensor, offers higher accuracy than the other meters in the market today
- Compact and easy to carry
- Best in measuring dimension of house and distance between objects
- Battery operated with backlight
- Imperial & metric unit transition
- Display real-time temperature
- With data hold and ultrasonic transmission process indicator
Specifications
- Cable Height Measuring Range
- 25mm cable min: 3-23m
- 12mm cable min: 3-15m
- 5.5mm cable min: 3-12m
- 2.5mm cable min: 3-10m
- Horizontal Measuring Range: 3-18m
- Resolution Range
- less than 10m: 5mm
- more than 10m: 10mm
- Measuring Accuracy: 0.5% ± 2d
- Minimum gap between the wires: 150mm
- Auto power off delay: 120s
- Low battery alarm: 7.2V ±0.2V
- Ultrasonic Transmitting angle: 1.4m
- BOT Mode: measuring the height of the most lower 6 cables from the ground
- TOP Mode: measuring the height of the most higher 6 cables from the ground
- Units: ft / inch / m (distance) , °F / °C (temperature)
- Operating Temperature Range: -10°C-40°C
- Operating Voltage: 1 x 9V 6F22 Battery (included)
- Dimension: 75 x 72 x 200mm
- Weight (main unit with accessory bracket): 205g (excluding battery)
- Battery Life: 20H (continuous use)
Set Includes
- 1 x Ultrasonic Cable Height Meter
- 1 x Instruction Manual
- 1 x Accessory Bracket (Horizontal Distance Measurement Only)
- 1 x Portable Soft Black Pouch
- 1 x Shock Absorbent Hard Carrying Case
- 1 x 9V Alkaline Batter
