| 原産地: | 中国(本土) | 銘柄: | ユニット | モデル番号: | utd1062c |
包装
| 包装: | 標準カートンごとの数量4個標準カートンの測定475460380ミリメートルx( cbm0.10輸出カートンごと) |

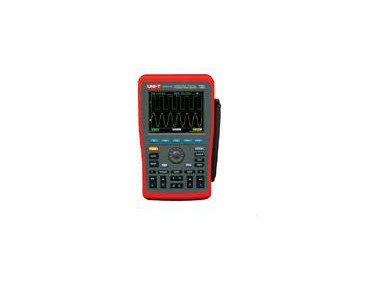

SPECIFICATIONS Feature UTD1062C
Bandwidth 60 MHz
Rise Time ≤5.8 ns
Real-time Sampling Rate 250MS/s
Equivalent Sampling Range 25GS/s
Vertical Sensitivity 5mV ~ 50V/div
Record Length (Max) 2 x 512k
Scan Time base 5ns ~ 50s/div
Trigger Type Edge, Pulse, Video and Alternate
Automatic Waveform Measurements 27
Frequency Counter 6 digits frequency counter
Ports USB Host
Mathematics Add, Subtract, Multiply, Divide, FFT
Interface Colour and Mono display selectable
Power The provided battery or out-sourced adaptor
Life of Battery 3 hours
Other Features Multimeter,special LCD copy feature
Multimeter
Resistance 600Ω / 6MΩ / 60MΩ : ± (1.5% + 5 digits)
6kΩ / 60kΩ / 600kΩ : ± (1.2% + 5 digits)
DC Voltage 600mV, 6V, 60V, 600V, 1000V: ± (1% + 5 digits)
AC Voltage
(45Hz ~ 400Hz) 600mV, 6V, 60V, 600V, 700V:
± (1.2% + 5 digits), Frequency: <200Hz
± (1.5% + 5 digits), Frequency: ≥200Hz
DC Current 6mA, 60mA, 600mA: ± (1.2% + 5 digits)
6A: ± (1.5% + 5 digits)
AC Current
(45Hz ~ 400Hz) 6mA, 60mA, 600mA: ± (2% + 5 digits)
6A: ± (2.5% + 5 digits)
Capacitance 6nF, 6mF: ± (5% + 10 digits)
60nF, 600nF, 6μF, 60μF, 600μF: ± (1.5% + 5 digits)
Continuity Buzzer
Diode
Trend Diagram
Testing Mode Manual / Auto ranging
Max.Display 5999
GENERAL CHARACTERISTICS Power 100 - 240V 50/60Hz 1.5A
LCD Size Diagonal 145mm (5.7 inches)
Product Color Red and Grey
Product Net Weight 1.8kg
Product Size 268mm x 168mm x 60mm
Accessories Probe x 2 (1x, 10x switchable),
Current Voltage Convertor x 2(UT-M03, UT-M04)
Power Cord, DC Adaptor and English Manual, Test Lead
Standard Individual Packing
Tool Box and Gift Box
Standard Quantity Per Carton 4 pcs
Standard Carton Measurement 475 x 460 x 380mm (0.10 CBM Per Export Carton)
Standard Carton Gross Weight Around 23.2kg
