| 出力電圧: | 3*110,127,230,240 | 原産地: | 中国(本土) | 銘柄: | hord | モデル番号: | DEM021MC | 段階: | 三相四線 | 実用温度: | -40℃〜+ 40℃ | ジスプレー体: | アナログとデジタル | 測定エネルギー範囲: | 5 (30)、10 (60)、20 (100) | 次元: | 88 × 125 × 73ミリメートル | 正確さのクラス: | クラス1.0 |
包装
| 包装: | 紙箱やfoambox、 次に、 標準的な輸出カートンまたはパレット20個/ctn |

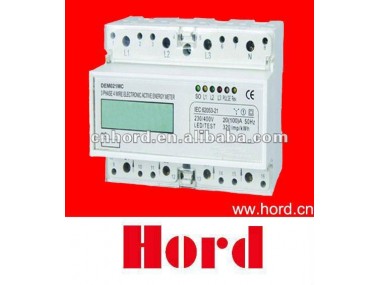

DEM021MC three phase electronic watt-hour meter
Application Type DEM021 three phase DIN rail watt-hour meter is a kind of new style three phase electronic watt-hour meter, the meter completely accord with relevant technical requirements of class 1 and class 2 single phase energy meter stipulated in National standard GB/T17215-2002 and international standard IEC61036. it can accurately and directly measure active energy consumption from three phase AC electricity net, it can display total energy consumption by step type impulse register or LCD display.
It has following features: Good reliability, small volume, light weight, specious nice appearance, convenient installation, etc.
Functions and features
1. May selec 35mm DIN rail installation and installation on the board.
2. May selec 5+1 digits register by step type or 7 digits LCD display.
3. May selec infrared carrier wave communication and RS485 serial port communication.
4. Impulse output when no power, complying with standard DIN43864.
| Technical parameters | ||||||||||||
|
