| 原産地: | 中国(本土) | 銘柄: | uni-t | モデル番号: | 2102cex | チャンネル:: | 2 | 帯域幅:: | 100 mhz |
包装
| 包装: | 標準梱包 |

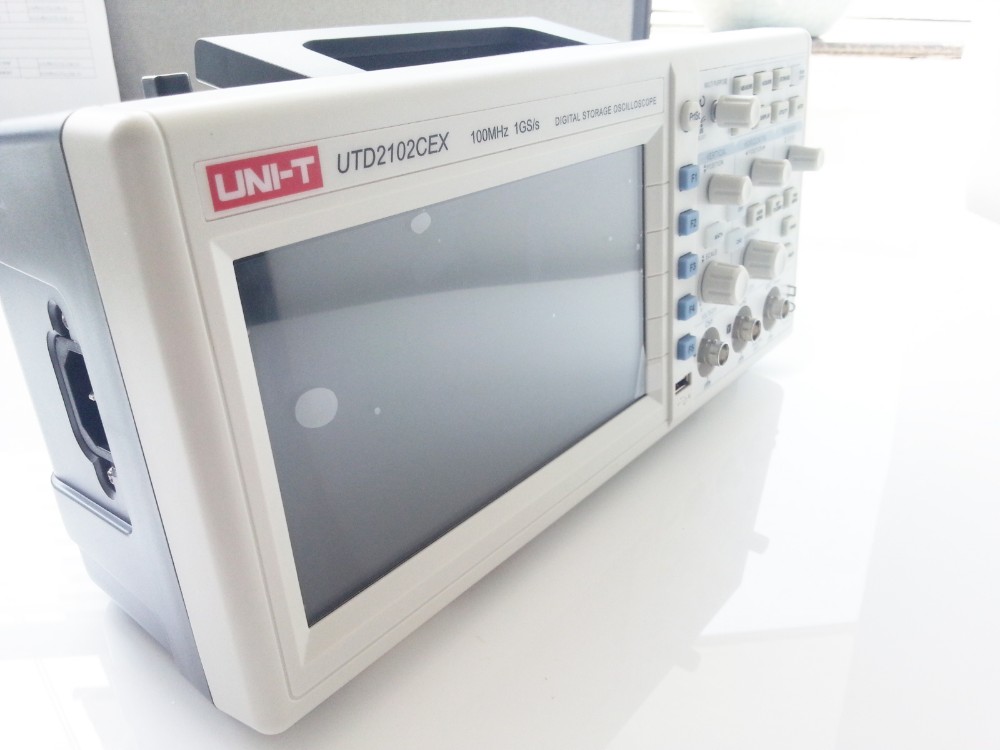

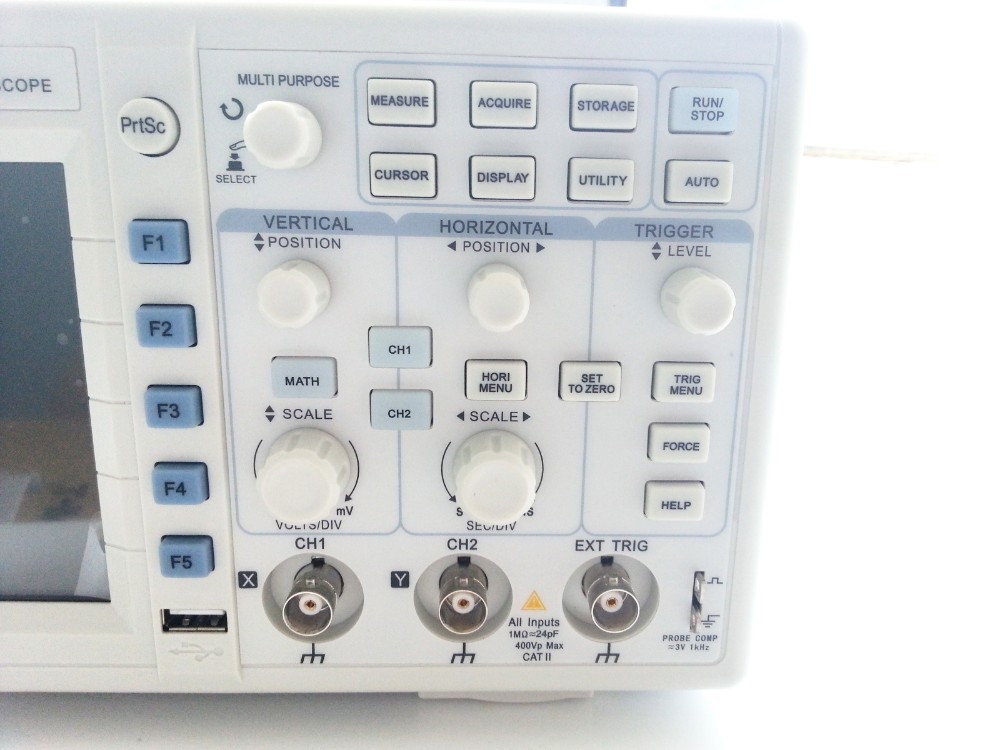

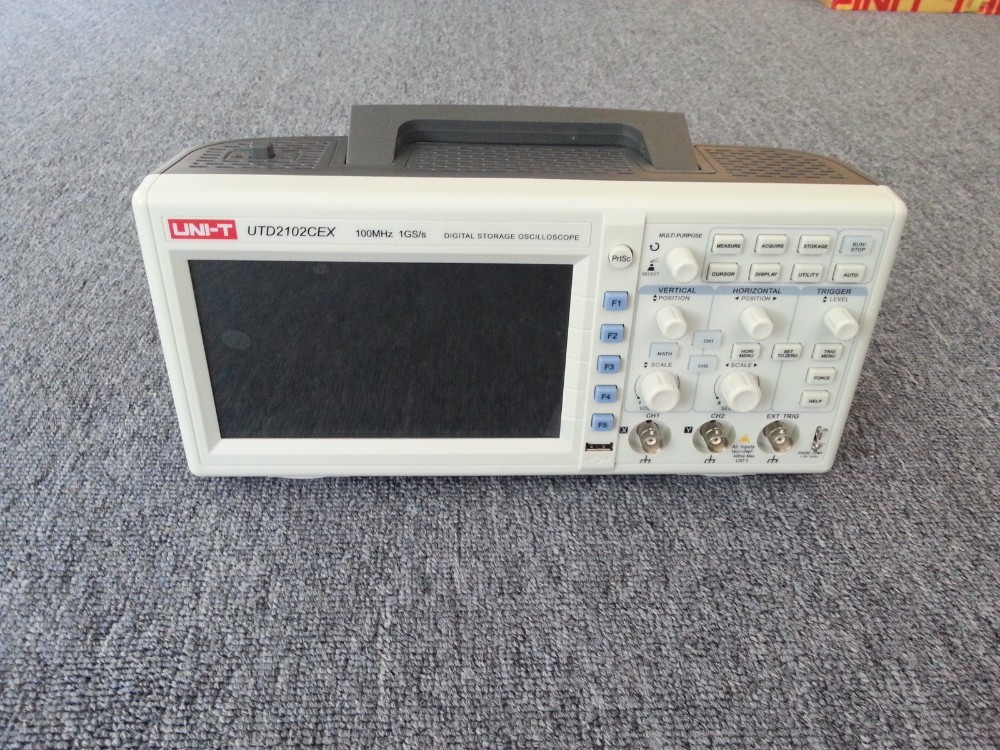

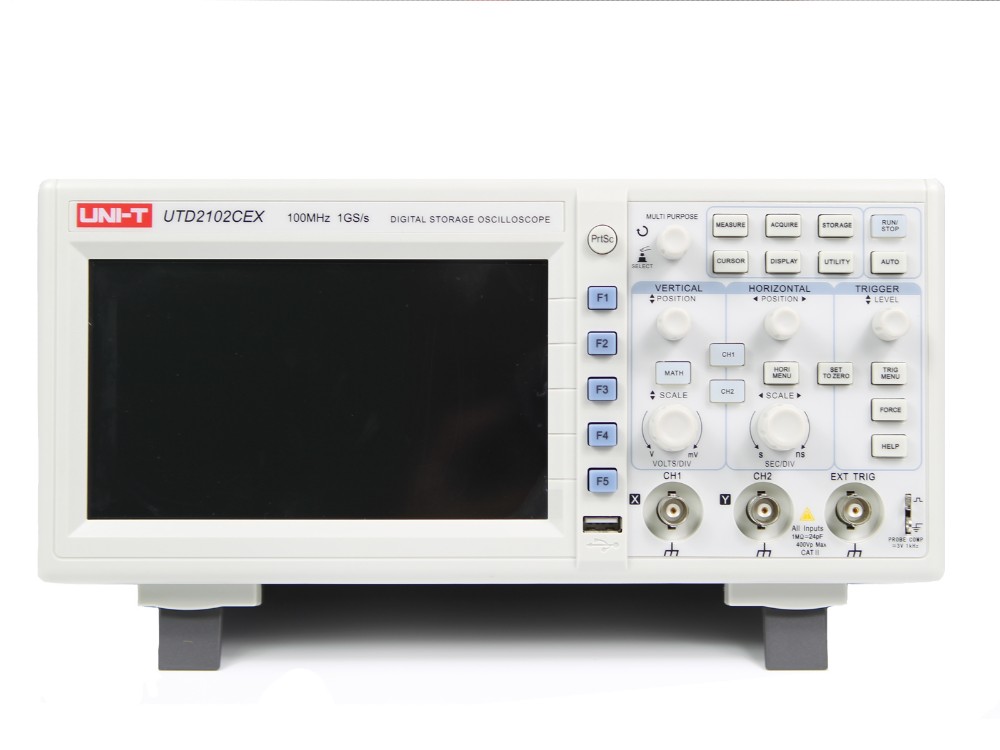

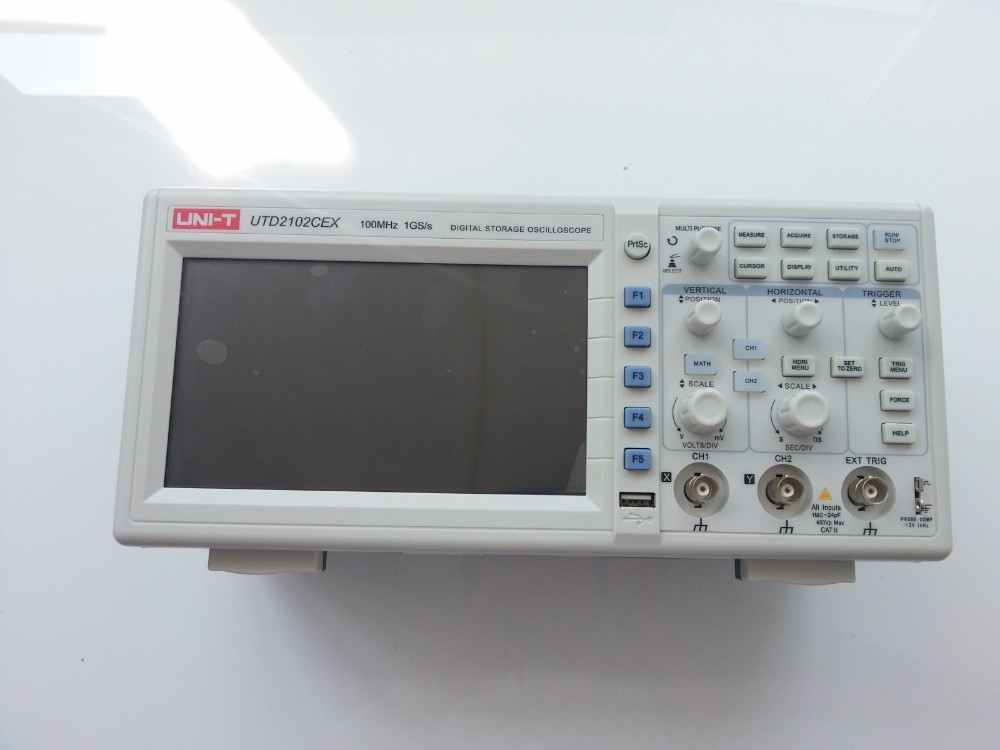

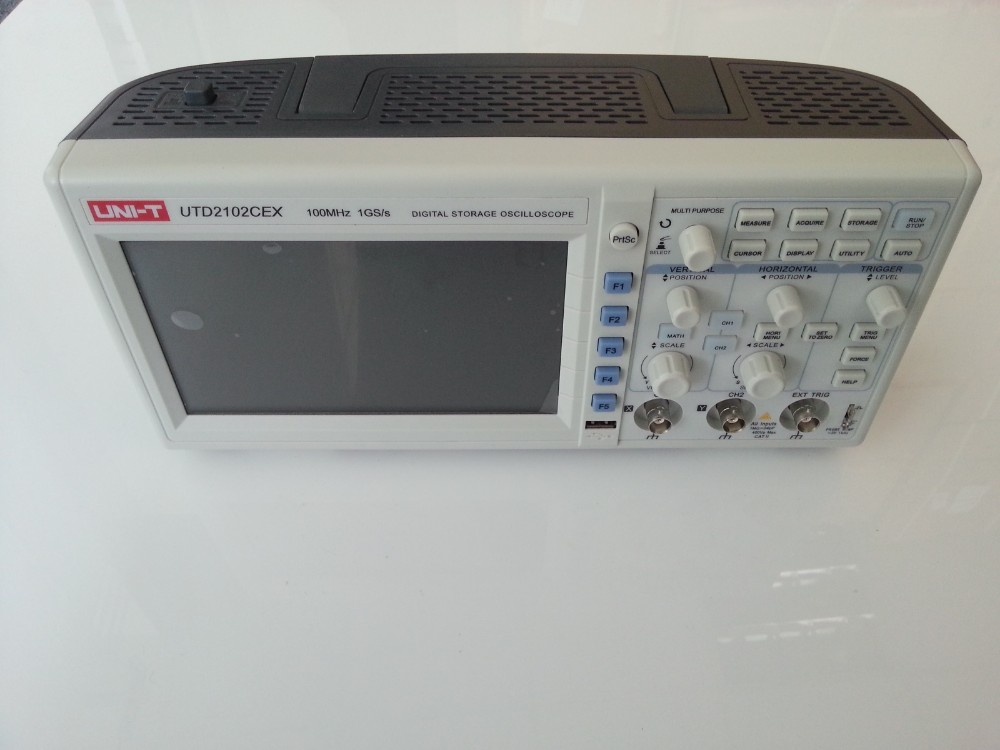

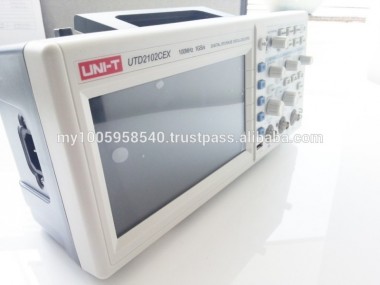

UNI-T UTD 2102CEX USB Digital Storage Oscilloscopes DSO 100MHz 1GS/S Dual Channels 7'' TFT LCD Scopemeter w/USB OTG Interface US/EU/AU Plug
Features:
1. Dual analog channels width range 1mV/div~20V/div;
2. 7 inches widescreen LCD displays;
3. The new interface style;
4. Supports plug-and-play USB storage device. Communication with and remote control of computer through the USB device;
5. USB drive system software upgrade;
6. Storage of waveforms setups and interfaces waveforms and setups reproduction;
7. Automatic measurement of 34 waveform parameters;
8. Unique waveform recording and replay function;
9. Multilingual menu displays.
Specification:
Model: UTD2102CEX
Channels: 2
Bandwidth: 100MHz
Sample Rate: 1Gs/s
Rise Time: 3.5 ns
Memory Depth: 25kpts
Waveform Acquisition Rate: 2000wfms/s
Vertical Sensitivity(V/div): 1mV/div~20V/div
Timebase Range(s/div): 2ns/div~50s/div
Storage: Setup,Wave,Bitmap
Trigger Modes: Edge,Pusle,Alternate
Interface: USB OTG
General Characteristic:

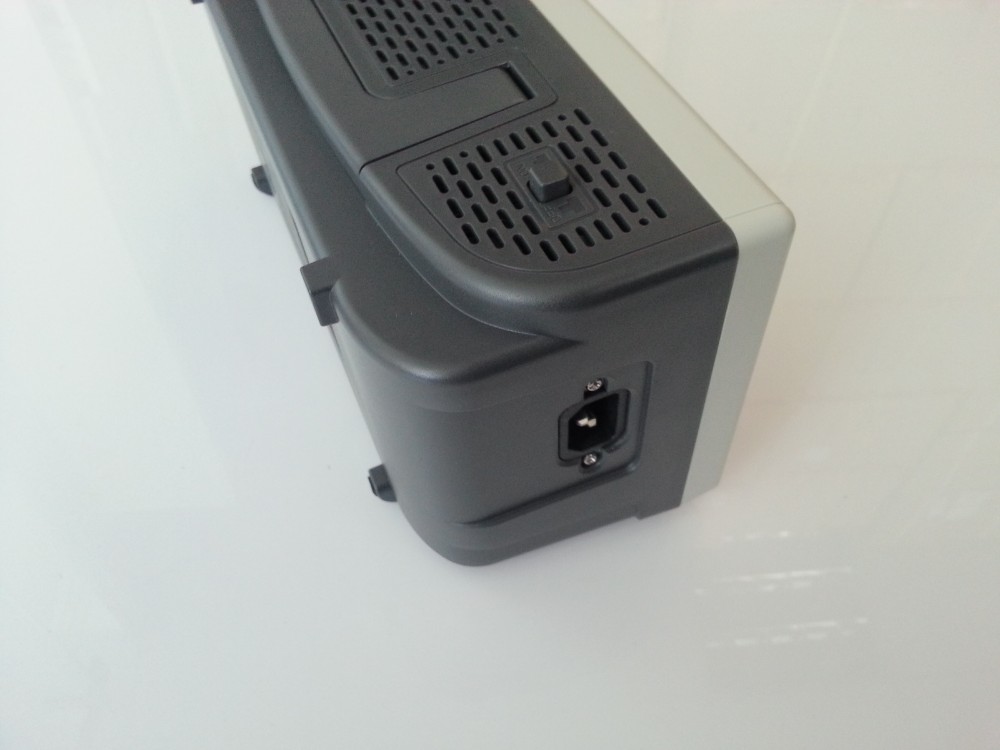

Power: 100-240VAC, 40-440Hz
Product Net Weight: 2.2 Kg
Product Size: 306mm * 147mm * 122mm
Display: 7 Inches 64K Color TFT LCD, 800×480
Product Color: White and Gray
Package Size: 39 * 24 * 21cm / 15.4 * 9.5 * 8in
Package Weight: 3334g / 7.4lb

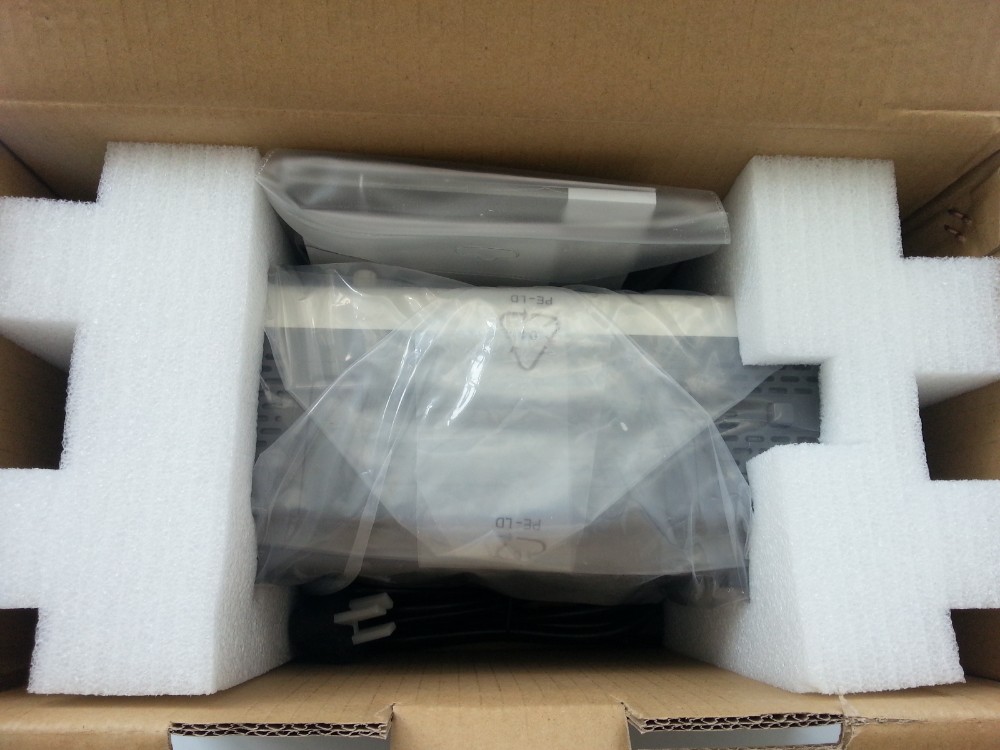

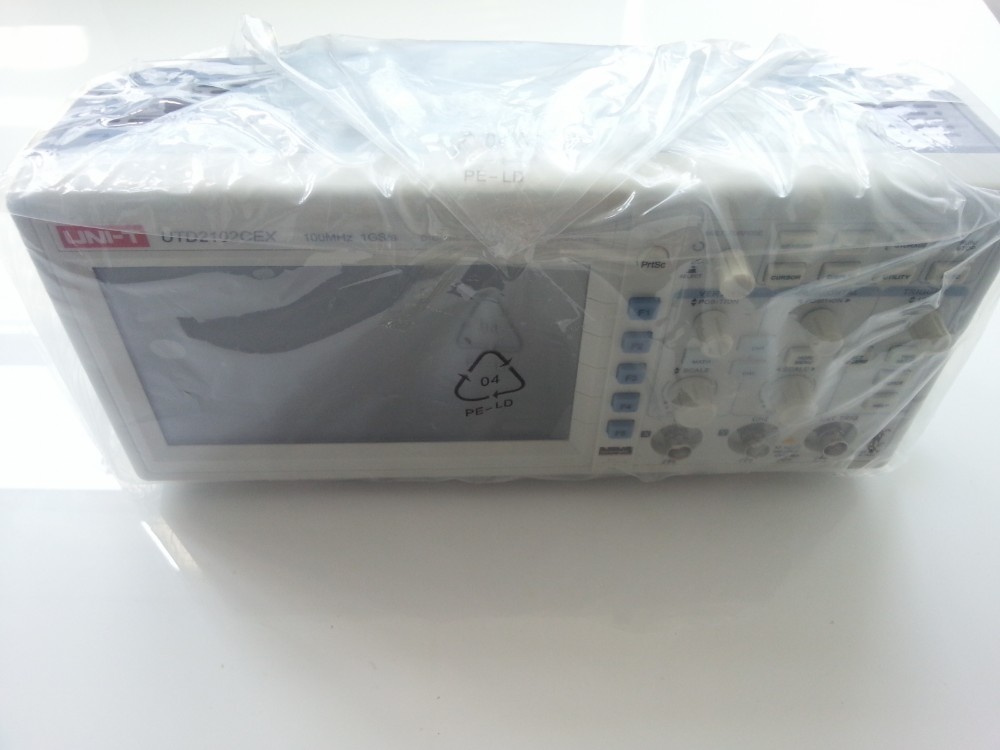

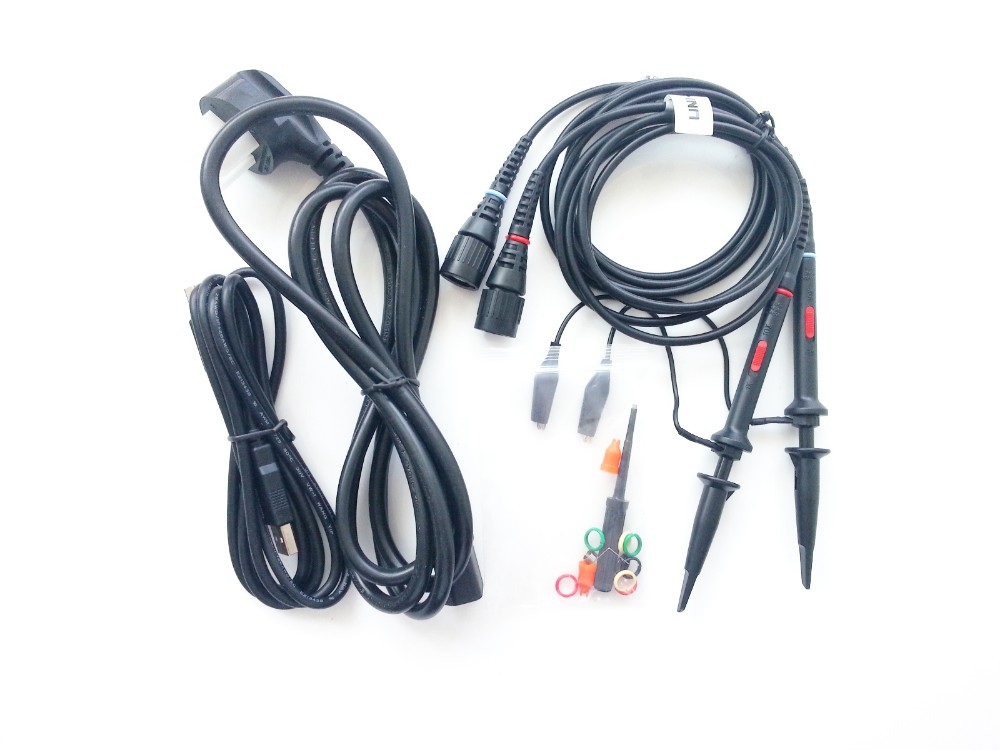

Package List:
1 * UNI-T UTD 2102CEX Digital Storage Oscilloscope
2 * Probe (1×,10× switchable)
1 * USB Cable
1 * Power Power Cable
1 * English Manual
1 * CD Software
