| 測定インダクタンス範囲: | ワット | 原産地: | 中国(本土) | 測定キャパシタンス範囲: | 12v | 銘柄: | uni-t | 測定の抵抗の範囲: | Ω/4kΩ/40kΩ/400k Ω/4mΩ/40mΩ | モデル番号: | UT-61B | 実用温度: | c | 次元: | 180ミリメートル× 87ミリメートル× 47ミリメートル | 測定の現在の範囲: | 400μa/4000μa/40ma/400ma/4a/10a | 測定の電圧範囲: | 40mv/400mv/4ボルト/40ボルト/400ボルト/1000ボルト | 重量: | 1キログラム |
包装
| 包装: | 標準梱包 |
Modern Digital Multimeters

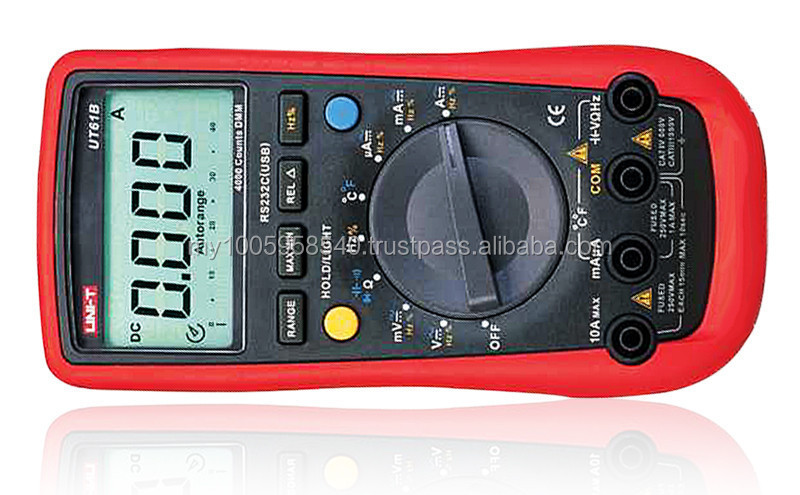

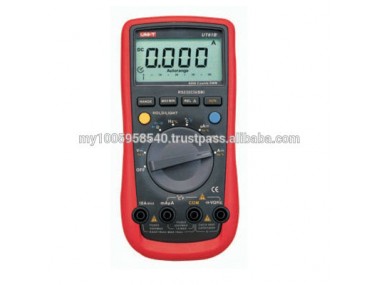

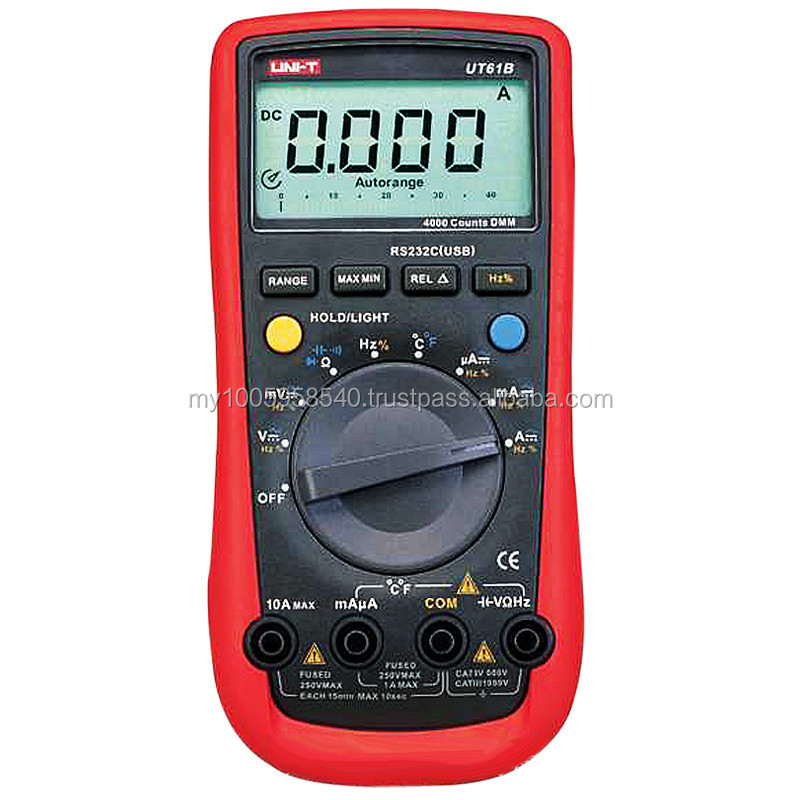

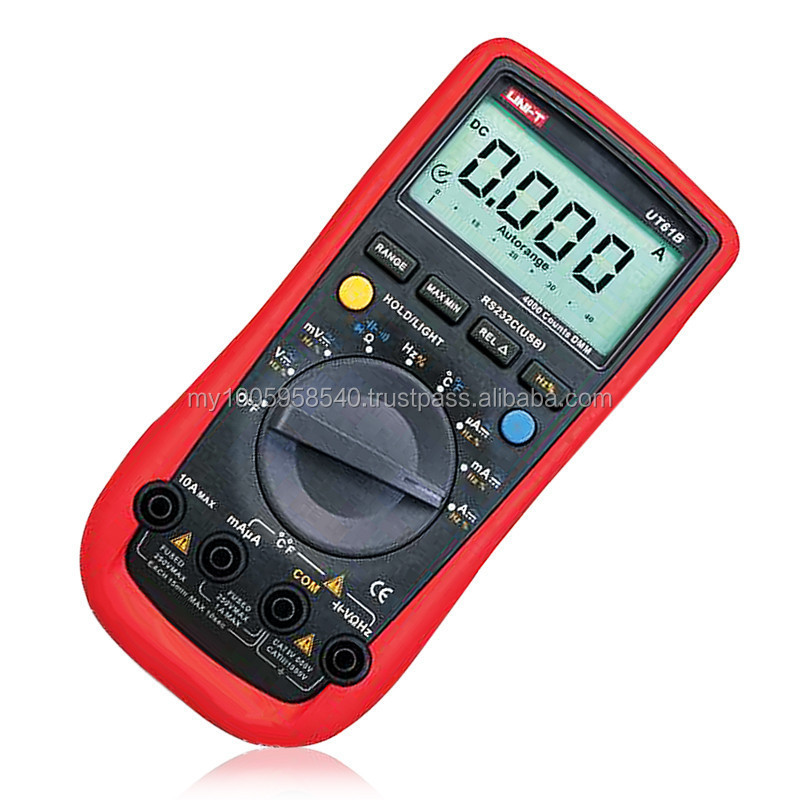

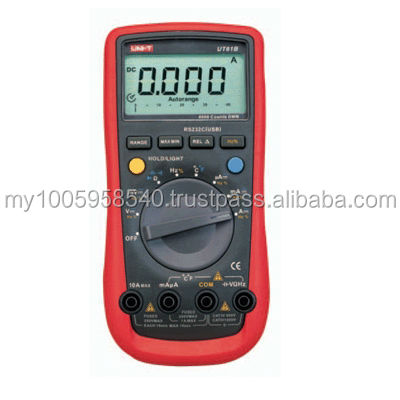

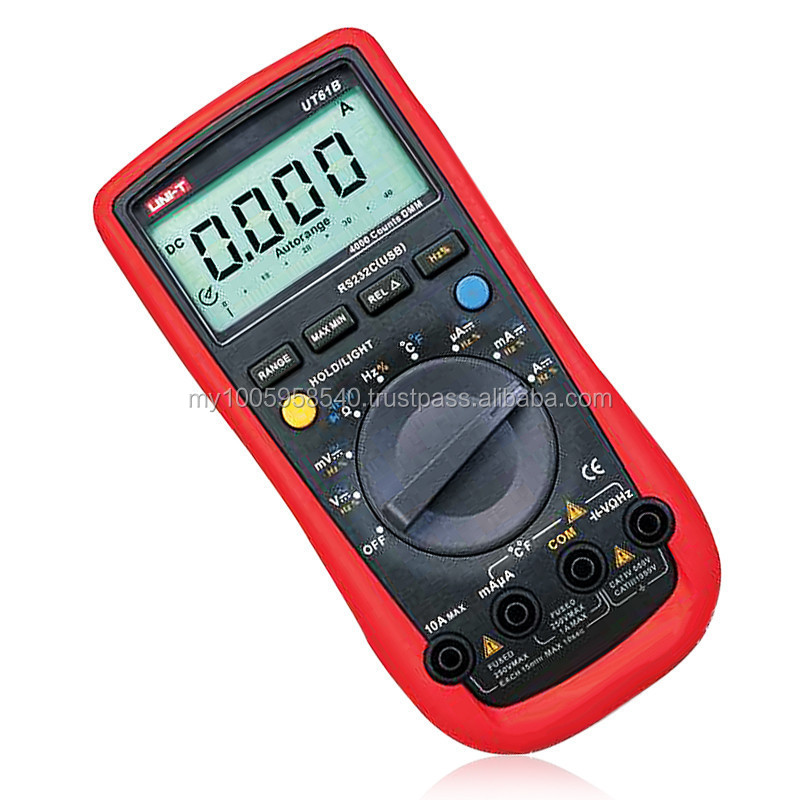

UT61B
UT61 Series Digital Multimeters are products designed for multi-functional, high precision, high performance and automatic measurements.
- 1,Large LCD screen;
- 2,High resolution analog pointer display;
- 3,Full range overload protection;
- 4,Data hold, REL, Peak value measurement;
- 5,Low battery indication, backlight, and sleep mode;
- 6,External interface supports RS-232C and USB cable. UT61Series can measure AC/DC voltage and current, resistance, diode, circuit continuity, capacitance, frequency, temperature, hFE, electromagnetic induction, etc.
- UT61 Series complies with the standard IEC61010: CAT. III 1000V, CAT.IV 600V; they are widely used in Industrial Production and Service, Technological Research and Design, College Education (Laboratory, Courses), and Automotive Industry.
| Specifications | Range | Best Accuracy |
| Model | UT61B | |
| DC Voltage (V) | 40mV/400mV/4V/40V/400V/1000V | ±(0.5%+1) |
| AC Voltage (V) | 40mV/400mV/4V/40V/400V/750V | ±(1%+3) |
| DC Current (A) | 400μA/4000μA/40mA/400mA/4A/10A | ±(1%+2) |
| AC Current (A) | 400μA/4000μA/40mA/400mA/4A/10A | ±(1.2%+5) |
| Resistance (Ω) | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ | ±(1%+2) |
| Capacitance (F) | 40nF/400nF/4μF/40μF/400μF/4000μF | ±(3%+5) |
| Frequency (Hz) | 10Hz-10MHz | ±(0.1%+4) |
| Temperature (°C) | -40 °C ~ 1000°C | ±(1.2%+3) |
| Temperature (°F) | -40°F~1832°F | ±(1.2%+4) |
| Features | ||
| Display Count | 4000 | |
| Auto Range | √ | |
| Manual Range | √ | |
| Bandwidth (Hz) | 45Hz ~400Hz | √ |
| Duty Cycle | 0.1% ~ 99.9% | √ |
| Diode | √ | |
| Auto Power Off | Around 15 Minutes | √ |
| Continuity Buzzer | √ | |
| Low Battery Indication | ≤7.5V | √ |
| Data Hold | √ | |
| Relative Mode | √ | |
| MAX/MIN | √ | |
| RS-232 | √ | |
| LCD Backlight | √ | |
| Analogue Bar Graph | 41 | |
| Input Protection | √ | |
| Input Impedance for DCV | Around 10MΩ | √ |
| General Characteristic | ||
| Power | 9V Battery(6F22) | |
| LCD Size | 65mm X 43 mm | |
| Product Color | Red and Grey | |
| Product Net Weight | 370g | |
| Product Size | 180mm X 87mm X 47 mm | |
| Standard Accessories | Battery, Test Lead,Muli-Purpose Socket,RS-232 Interface Cable,Software,Point Contact Temperature Probe | |
| Standard Individual Packing | Gift Box, English Manual | |
| Standard Quantity Per Carton | 20 PCs | |
| Standard Carton Measurement | 465mm X 335mm X 345mm | |
| Standard Carton Gross Weight | 12 Kg | |
| Optional Accessories* | USB Interface Cable | |

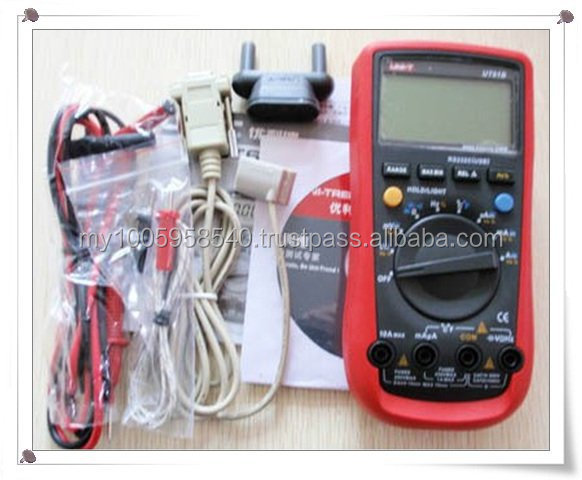

Packing List:
Battery,
Test Lead,
Muli-Purpose Socket,
RS-232 Interface Cable,
Software CD,
Point Contact Temperature Probe
