| 原産地: | 中国(本土) | 銘柄: | yinrich | ドライブの種類: | 機械 | 適用: | 食物 | モデル番号: | Cb520/720 | 自動等級: | 自動 | 包装材料: | フィルム | 包装タイプ: | フィルム | タイプ: | 包装機 | 条件: | 新しい | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 名: | マシンを梱包 | type1: | 一般的な | type2: | キャンディーがマシンを梱包 | 包装材料: | 全自動 |
包装
| 包装: | 木製ケースプライ |
CB520/720 packing machine
Complete set of this machine
- CB-520 main machine
- Ten heads combined scale
- Z type feeding conveyor
- Supporting platform
- Finished product conveyor
no. | Components | Qty |
1 | Automatic Vertical Form/fill/seal packaging machine | 1set |
2 | Ten heads electronic weighing scale | 1set |
3 | Z type feeding conveyor | 1set |
4 | Final products outgoing conveyor | 1set |
5 | Stand-up platform | 1set |
Function and structure characteristics
- The system can finish automatically all processes ,i.e Feeding, measuring, filling and bag making, printing date, product output.
- High measuring accuracy, high efficiency, no broken material.
- Less manpower, less waste, easy operation and maintenance.
Application scope
Suitable for packing fragile bulk material with irregular shapes and requiring high measuring accuracy, such as :puffed food, shrimp strip, potato chips, banana chips, apple flakes, crispy rice, biscuit, peanut, cooked seeds, sweets etc.
CB-520 Large vertical auto packaging machine
Function and structure characteristics
- Side film pulling belt , doubel position correction by power adjusting film carrier , which keeps even film conveyance and bag forming .
- High packing speed , 55 bags / min in max bag length.
- Two independent sealing cylinders , excellent airtight , transparent sealing .
- Applied with PLC , color touchable screen , high auto , operate & maintenance easily . The machine runs smoothly , low noisy.
This machine can be equipped with following devices
Electronic weighing system , semi auto feeding device , spiral type powder measuring device and cup measuring device.
Scope or Application
Suitable for packing fragile bulk material with irregular shapes and requiring high measuring accuracy, such as :puffed food, shrimp strip, potato chips, banana chips, apple flakes, crispy rice, biscuit, peanut, cooked seeds, sweets etc.
Technical specifications:
Type | CH-520 |
Bag sealed type | Pillow bage , side folded bag , square bottom vertical bag |
Max. Film width | 520mm |
Bag length | 80-350mm |
Bag width | 80-250mm |
Measuring range | 2000ML |
Packing speed | Max 55bag/min (depend on the bag length ) |
Power supply specification | 220V,3KW |
Total weight of machine | 650kg |
Machine size | (L)1800*(W)1200*(H)1900mm |

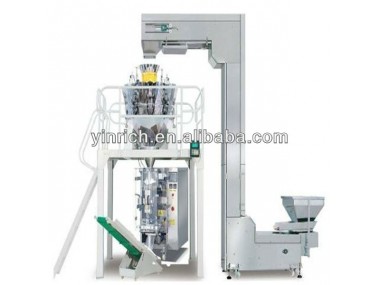

PHOTO SHOWS OF THE MACHINE:
