| 原産地: | 中国(本土) | タイプ: | 石のディバイダー | 条件: | 新しい | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | キーワード: | darda油圧岩スプリッタ | タイプ: | 油圧ブレーカ | ブランド名: | hmj | モデル番号: | HM80A | 穴の深さ(mm): | 300-800 | 長さのシリンダボディ(ミリメートル): | 700-1250 | 実際に分割力(t): | 360-700 | カウンターウェッジ長さ(mm): | 200-450 | 分割距離(ミリメートル): | 12-14 | 重量: | 28キログラム |
包装
| 包装: | 木製パッケージ |
darda hydraulic rock splitter
Introduction of darda hydraulic rock splitter
The Hydraulic splitter is our newly developed produce which is composed of two parts: hydraulic pumping station and splitter. The supper-high-pressure oil-driven oil cylinder outputted by the pumping station generates gigantic driving power, which can split
Technical Paramter of darda hydraulic rock splitter
1. Hydraulic power pump station:
Motor type | Specification (MM) | Weight (KG) | Capacity of tank (L) | Working Pressure(Mpa) | Power | Working Medium | Work Flow (L/M) | Configurable splitting hammer number (Piece) |
Diesel Type | 1150*750*800 | 120 | 25 | 55-60 | 4HP | 46 or 68 anti-wear hydraulic oil | 2-13 | 1-3 |
1280*1180*940 | 145 | 45 | 55-60 | 7.7HP | 2-13 | 3-6 | ||
Electric Type | 380*240*410 | 60 | 25 | 55-60 | 2.2KW(220V/380V) | 2-13 | 1-10 | |
384*280*620 | 75 | 30 | 55-60 | 4KW(380V) | 13 | 1-10 | ||
450*410*700 | 100 | 40 | 55-60 | 5.5KW(380V) | 2-13 | 1-10 | ||
Anti-explosion Electric Type | 380*240*410 | 60 | 25 | 55-60 | 2.2KW(380V/660V) | 2-13 | 1-10 | |
384*280*620 | 75 | 30 | 55-60 | 4KW(660V/1140V) | 2-13 | 1-10 | ||
Pneumatic Type | 284*285*620 | 100 | 40
| 55-60 | 2000r/m, 4.04KW,5.5HP | 2-13 | 1-10 | |
Gasoline Type | 1200*1170*800 | 100 | 40 | 55-60 | 7.5HP | 2-13 | 1-10 |
2. Splitter hammer
Model | Piston Diameter/Stroke(MM) | Hole Diameter(MM) | Hole Depth(MM) | Actually Splitting Force (T) | Splitting Distance(MM) | Length of Cylinder body(MM) | Counter wedge length(MM) | Weight (KG) |
HM80A | 80 /200 | 40-42 | 400 | 380 | 12 | 900 | 200 | 21 |
HM80B | 80/ 200 | 42-45 | 600 | 500 | 13 | 1000 | 230 | 28 |
HM80C | 80/ 200 | 42-45 | 700 | 420 | 12 | 1100 | 380 | 29 |
HM80D | 80/ 250 | 42-45 | 800 | 460 | 14 | 1250 | 450 | 32 |
HM80E | 80/ 140 | 40-42 | 300 | 360 | 14 | 700 | 130 | 20 |
HM90A | 80/ 200 | 40-42 | 400 | 580 | 12 | 900 | 200 | 31 |
HM90B | 80/ 200 | 42-45 | 600 | 700 | 13 | 1000 | 230 | 38 |
HM90C | 80/ 200 | 42-45 | 700 | 620 | 12 | 1100 | 380 | 39 |
HM90D | 80/ 250 | 42-45 | 800 | 660 | 14 | 1250 | 450 | 42 |

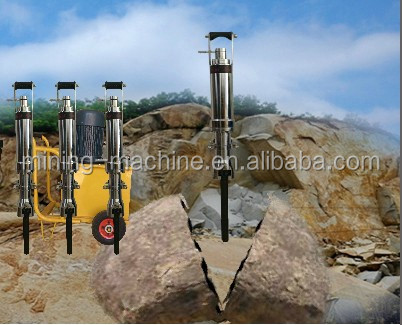

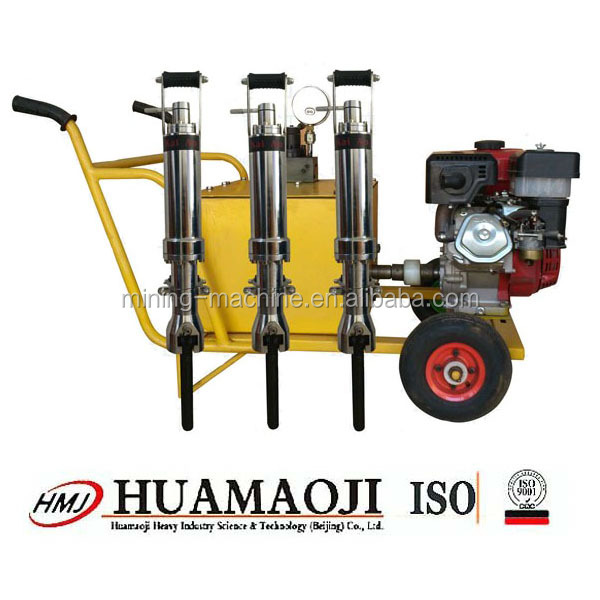

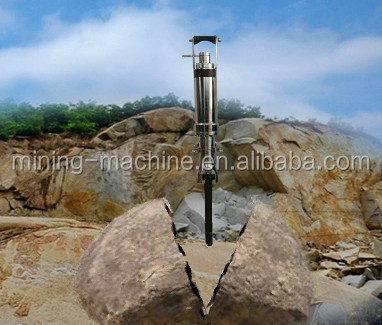

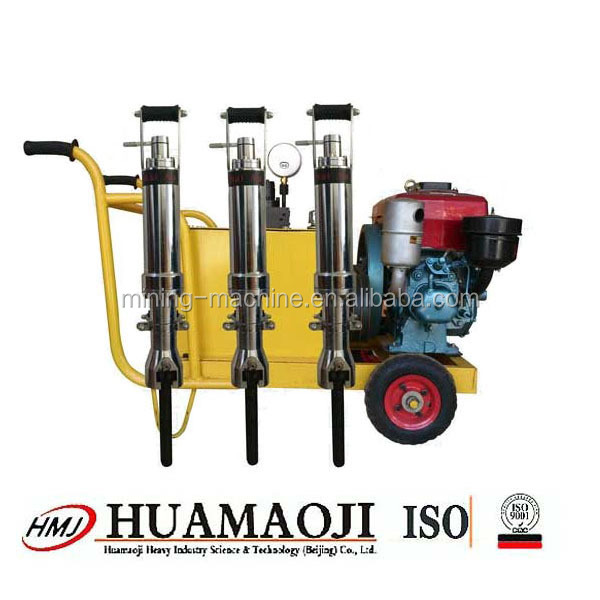

Pictures of darda hydraulic rock splitter

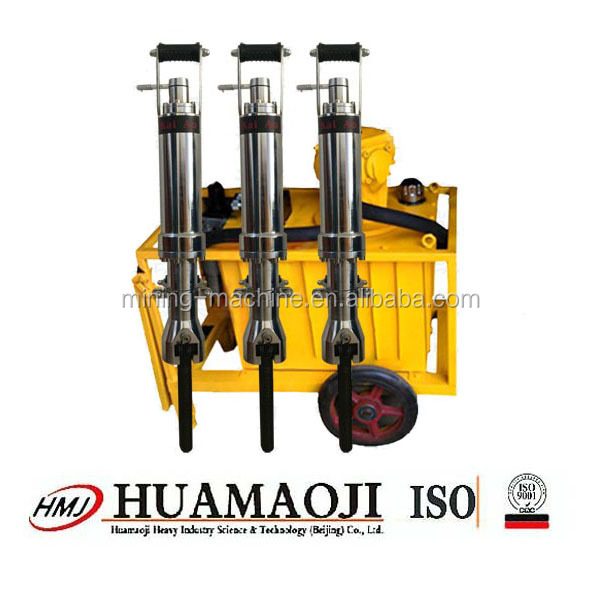

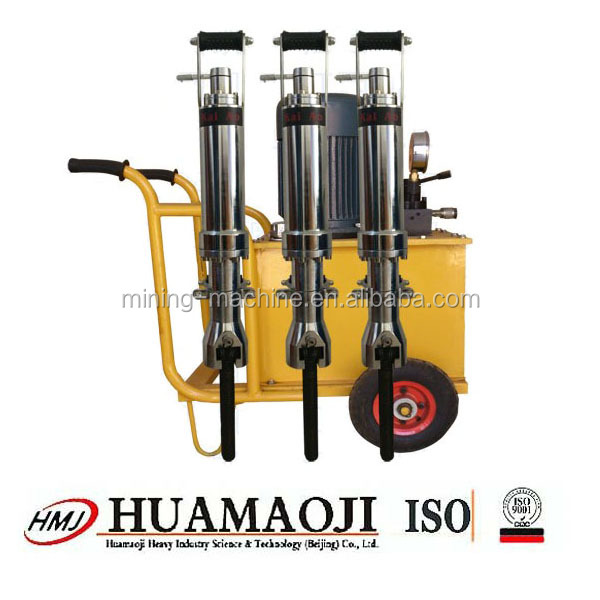

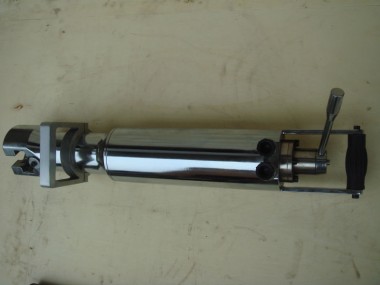

Electric hydraulic splitter Pneumatic rock splitter
