| 原産地: | 中国(本土) | 銘柄: | soosan | モデル番号: | soosanシリーズ | キーワード: | 油圧ブレーカ部品 | ブランド名: | HMJ60 | チゼル直径(mm): | 75 | チゼル長さ(mm): | 712 | 該当するショベル(トン): | 6-9 | moq: | 1ピース | 財産: | 工場 | 原産地: | 中国(本土) | アタッチメント: | 二つのオイルホース、二つのノミ、ワン窒素シリンダー、1セットのツールケース | 色: | 任意の色利用可能 |
包装
| 包装: | 輸出標準 |

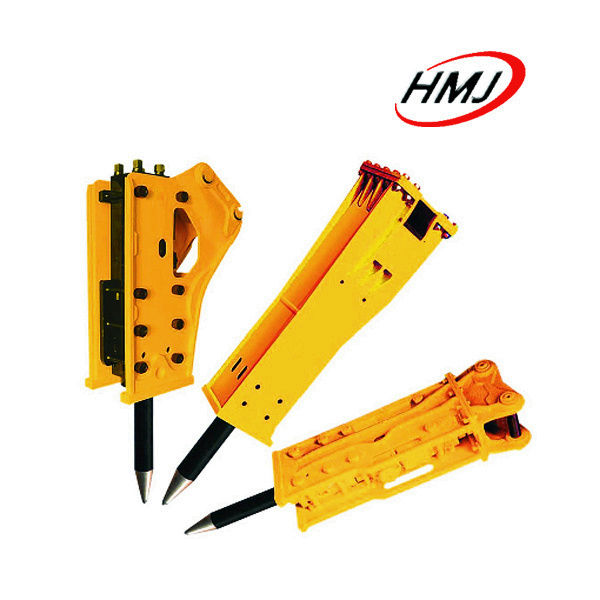

Soosan hydraulic breaker/hammer parts for excavator
The hydraulic breakers with unique Design can perform the breaking task effectively and safely whatever situation they are in, such as breaking concrete, reinforced concrete, asphalt and rock in the wilds or in the cities wher the noise level is strictly controlled.
1.Characteristics
1)Sense of worth:Work at excellence and watch to development
2)Sense of talent: Regard for ability,to possess Inter-disciplinary talent who have both Technical and executive capability.
3)Sense of faith: Fit the action to the word,try the best to the work,to build a highly reputation in the market.
4)Sense of marketing: To take market as the direct,to set up customer demand as the core,focus on on customer satisfaction,to establishing business relationships with customers based on mutual benefits

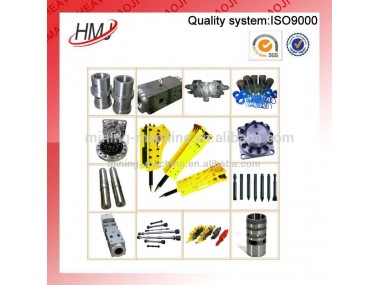

2.Product show
6.Technical Parameters
| HMJ20 | HMJ30 | HMJ40 | HMJ60 | HMJ70 | HMJ80 | HMJ81 | HMJ150 | HMJ160 | HMJ175 | |
| Weight (kg) | 120 | 250 | 380 | 765 | 1255 | 1462 | 1740 | 2144 | 2650 | 3178 |
| Length(mm) | 1140 | 1330 | 1699 | 1939 | 2089 | 2289 | 2414 | 2603 | 2919 | 3189 |
| Required Oil Flow(L/min) | 25-50 | 40-70 | 50-90 | 80-110 | 90-120 | 100-150 | 120-180 | 150-210 | 200-260 | 210-290 |
| Work Pressure(kg/cm) | 80-120 | 110-140 | 120-150 | 150-170 | 150-170 | 160-180 | 160-180 | 160-180 | 160-180 | 160-180 |
| Impact Rate(b.m.p) | 600-1100 | 500-900 | 400-800 | 350-700 | 350-650 | 350-600 | 350-500 | 300-450 | 250-400 | 200-350 |
| Hose Diameter(In) | 1/2 | 1/2 | 1/2 | 3/4 | 1 | 1 | 1 | 1 | 5/4 | 5/4 |
| Chisel Diameter(mm) | 53 | 70 | 75 | 100 | 120 | 135 | 140 | 150 | 155 | 175 |
| Chisel Length(mm) | 580 | 700 | 712 | 950 | 1100 | 1200 | 1300 | 1400 | 1450 | 1500 |
Applicable(Ton) | 2.5-4.5 | 4-7 | 6-9 | 11-16 | 15-18 | 16-21 | 18-26 | 25-30 | 30-45 | 40-55 |
IF MORE DETAILS,FEEL FREE TO SEND ME EMAIL
