原産地: | 中国(本土) | 銘柄: | dsl | モデル番号: | TY24C | 条件: | 新しい | 提供される売り上げ後のサービス: | 利用できる海外第三者サポート | 仕事で: | 空気圧縮機 | 空気消費: | 2.7立方メートル/分 | ピストンストローク: | 68ミリメートル | 長さにわたって: | 610ミリメートル | シリンダボア: | 66.7ミリメートル | 過体重: | 27キログラム | シャンクサイズ: | 22 * 108ミリメートル | 深さの岩ドリル穴: | 5メートル | 原産地: | 福建省、中国(本土) | エアパイプインナーサイズ: | 19ミリメートル |
包装
包装: | 木製ケース や他の人 |

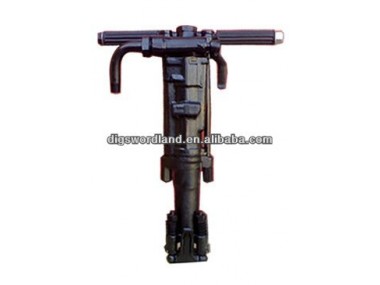

Forging TY24C Hand Held Rock Drill Equipment
Instruction
1. TY24C pneumatic rock drill are light and small types designed on the basis of less recoil and of safty.
2.They are suitable to the secondary breaking work,the work of drilling down bedrock,etc.
3.Easy to operate and mend .
4.Factory price ,good quality lower price ,High credibility.
Specification
products specifications | |
item name | TY24C |
Weight | 23kg |
Overall dimensions | 610mm |
Stoke | 68mm |
Cylinder Dia | 66.7mm |
Air pressure | 0.3-0.4mpa |
Water pressure | 0.2-0.3mpa |
Impact energy | |
Torque (at0.4MPa) | |
Impact frequency | >23Hz |
Air consumption | 2.7m3/min |
Drilling speed | 200mm |
Max drilling depth | >5m |
Air pipe inside dia | 19mm |
Water pipe inside dia | 13mm |
Drill bit size | 32-42mm |
Shank size | H22X108mm |
Pictures
