| 原産地: | 中国(本土) | 銘柄: | dsl | モデル番号: | Tca-7 | 条件: | 新しい | 重量を量る: | 7.2kg | 長さ: | 465mm | ノー- 負荷速度: | 1 | maxmumトーク: | 1 | 色: | 赤または他人 | 平均空気消費量: | 27l/s | エア配管内径: | 19mm | rammar径: | 35mm | 作業空気圧力: | 0.4~0.49mpa | マシン: | 穴あけ工具 |

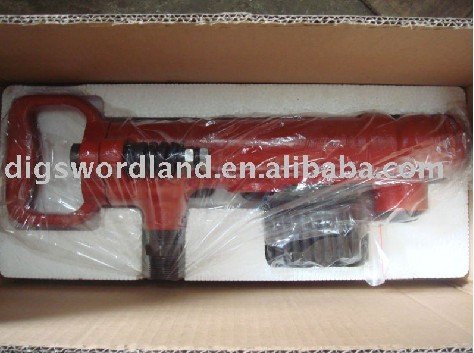

包装
| 包装: | 木製ケースや他の- に応じてcostomersの要件 |

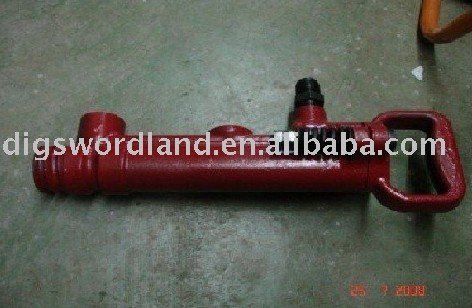

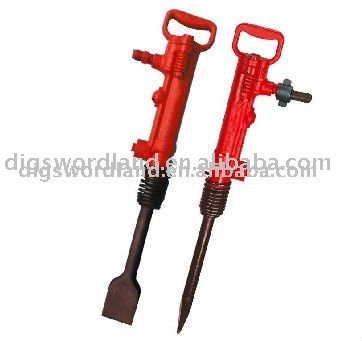

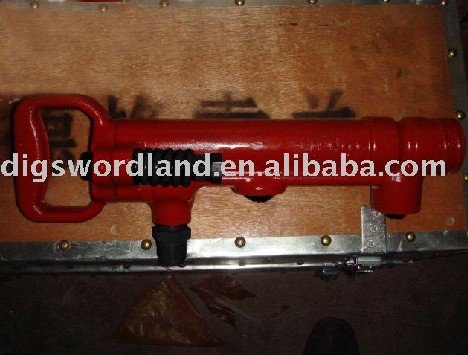

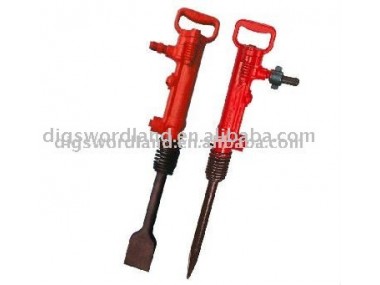

TCA-7 Jack Hammer/Pneumatic Breaker/Concrete Breaker /Pneumatic Pick
Specification
| Weigh | 7.2kg |
| Length | 465mm |
| Rammar dia | 35mm |
| Rammar stroke | 120mm |
| Rammar weigh | 0.6kg |
| Work air pressure | 0.4~0.49Mpa |
| Impact energy(0.49Mpa) | ≥30J |
| Impact frequency(0.49Mpa) | ≥21.6Hz |
| Air consumption(0.49Mpa) | ≤20L/S |
| Exterior Dimension (L×W×H) | 456×160×110mm |
| Air pipe inner dia | 19mm |
Instrustion
1.TCA-7 Concrete Breaker is more lighter and flexible compared to same type pick
2.it is suitable for operating all rounds of work, especially in narrow space or upper direction or high climbing is required.
