原産地: | 中国(本土) | エミッション規格: | ユーロ3 | 銘柄: | 東風 | 条件: | 使用される | 伝達タイプ: | 手動 | 寸法 (L x W x H) (mm): | 9800*2495*3400,3690 | 総車高: | 25000 | タンク容積: | 15001 - 30000L | エンジン容量: | 4 - 6L | 燃料: | ディーゼル | ドライブ車輪: | 6�4 | 保証: | すべての水スプリンクラータンクトラックやトレーラーはで12ヶ月quali | 区域(m)を振りかけること: | 8 - 12m | 提供される売り上げ後のサービス: | 利用できる海外第三者サポート | 縁石重量(kg): | 10870 | キャブ席: | 3 | アプローチ/出発角度(°): | 17/13 | フロント/リアハング(ミリメートル): | 1460/2690 | 車軸no。: | 3 | ホイールベース(ミリメートル): | 4350 + 1300 | 軸重(キロ): | 7000/18000 | 最高速度(km/h): | 95 | タイヤ仕様: | 11.00-20 | 鋼春番号: | 8/9、8/10 |
包装
包装: | 裸・ワックスで前にボード。 roroまたはバルク船 |

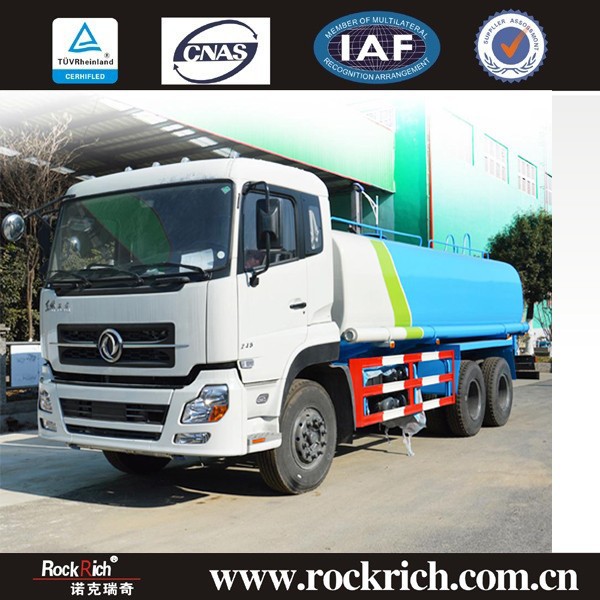

best quality diesel 6x4 china supplier Dongfeng watering truck
parameters of Dongfeng 6x4 sprinkler/ water spraying vehicle
Main specification | ||||||||||
Product name | water truck | |||||||||
Gross weight(Kg) | 25000 | Drive type | 6X4 | |||||||
Payload(Kg) | 14000 | Overall dimension(mm) | 9800×2495×3400,3690 | |||||||
Curb weight(Kg) | 10870 | Cab seats | 3 | |||||||
Approach/departure angle(°) | 17/13 | Front/rear hang(mm) | 1460/2690 | |||||||
Axle No. | 3 | Wheelbase(mm) | 4350+1300 | |||||||
Axle load(Kg) | 7000/18000 | Max speed(Km/h) | 95 | |||||||
Chassis specification | ||||||||||
Chassis model | DFL1250A8 | Manufacturer | Dongfeng Motor Co.,Ltd | |||||||
Brand name | Dongfeng | Dimension(mm) | 9460×2480×3030 | |||||||
Tyre specification | 11.00-20 | Tyre No. | 10 | |||||||
Steel spring number | 8/9,8/10 | Front track base(mm) | 1986,2040 | |||||||
Fuel type | Diesel | Rear track base(mm) | 1860,1860 | |||||||
Emission standard | Euro 3 | Transmission | 9 forward gear,1 reverse gear | |||||||
Cab | D310 flat and standard top cab, driver seat with airbag to reduce the vibration, PXD-B dashboard with air condition. | |||||||||
Engine model | Engine manufacturer | Displacement(ml) | Power(Kw) | |||||||
C260 33 | Dongfeng Cummins Engine Co.,Ltd | 8300 | 190 | |||||||
Performance | ||||||||||
Tank volume(m³) | 12(12 000liter) -20 m³ | Tank material | Carbon steel Q235 | |||||||
Water pump model | 80QZF-60/90N | Water pump flow(m³/h) | 60 | |||||||
Watering width(M) | ≥14 | Water cannon range (M) | ≥28 | |||||||
Feature and Application | ||||||||||
1).Equipped with high power self-suction water pump that characterized by high-pressure and fast speed suction. 2).Equipped with front, rear and side sprinklers and high position sprinkler, and rear working platform. 3).The water cannon which is installed on the working platform can rotate by 360 degree and the water flow can be adjusted into various rain shape. There are straight shape, heavy rain, moderate rain and drizzle etc. The max range can reach 30M. 4).Equipped with fire coupling, flow valves, filter screen and water level gauge. 5).According to customers’ request, the crane, high working platform and spraying machine also can be equipped. 6).Mainly used for washing on urban roads, watering and greening on trees, green belts and lawn and dust full of construction sites. And also used for drinking water delivery and fire fighting function etc. |
Packaging & Shipping
1, Naked or waxed before on board.
2, Delivery time: 30 days after receiving payment in advance.
3. By RORO or Bulk ship.
Product features:
1. Low oil consumption with good economic.
2. Pump: Applied Chinese famous pump.
3. Painting: Advanced panting technology make sure tank in good situation more than 5 years
Our company main products:
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck 7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
