| 原産地: | 中国(本土) | 銘柄: | deutz | モデル番号: | BF6M1015 | 重量: | 450キログラム | 認証: | ce | 使用法: | 建設 | 提供される売り上げ後のサービス: | 利用できる海外第三者サポート | 条件: | 新しい | 燃料: | ディーゼル | 保証: | グローバル保証 | 打撃: | 4打撃 | シリンダー: | 多シリンダー | 次元(L*W*H): | 1*1*1.5メートル | 冷たい様式: | Water-cooled | 開始: | 電気開始 | 機械: | エンジン | 他のcatagory: | エンジン組立 |
包装
| 包装: | 合板ケースパッケージ |

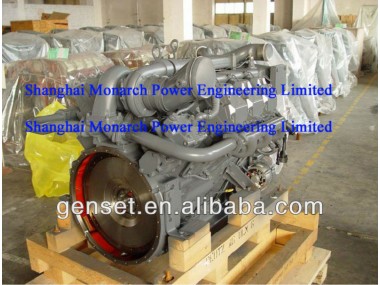

Deutz engine BF6M1015 BF6M1015C BF6M1015CP BF8M1015 BF4M2012 BF4M1013 BF6M2012 BF6M1013 for construction/vehicle
BFM1015 series engine for construction application:
BFM1015 series engineering machinery adopts watercooled diesel engine whose power range is 214 to 440kw.
The emission is better than Euro II. The torque rise is 30%~45%. The wide range rated speed(1800~2100r/min) is suitable for matching various products, with promising to run in different road conditions.
The engine adopts the inner oilline and inner water channel structure that makes the external pipes less distinctly .
It can reduce the potential possibilities of failures. The service life is about 15000 hours. One-cylinder-one head structure , good universality and convenient maintenance.
The inlet heating device can keep good start at temperature of -35°C.
| BFM1015 series engine for construction application. | |||||
| Monarch power limited | |||||
| Engine model | BF6M1015 | BF6M1015C | BF6M1015CP | BF8M1015C | BF8M1015CP |
| Air intake | Turbocharged | Turbocharged intercooled | Turbocharged intercooled | Turbocharged intercooled | Turbocharged intercooled |
| Bore*stroke(mm) | 132 ×145 | 132 ×145 | 132 ×145 | 132 ×145 | 132 ×145 |
| Displace-ment (L) | 11.906 | 11.906 | 11.906 | 15.874 | 15.874 |
| Rated power (kw) | 223~240 | 273~300 | 300~330 | 364~400 | 400~440 |
| Rated speed (r/min) | 1900/2100 | 1900/2100 | 1900/2100 | 1900/2100 | 1900/2100 |
| Max torque/speed (N.m)/(r/min) | 1420/1500 | 1978/1200 | 1876/1300 | 2640/1200 | 2500/1300 |
| Min fuel consumption (g/kw.h) | 209 | 200 | 202 | 200 | 211 |
| Idle speed (rpm) | 600 | 600 | 600 | 600 | 600 |
| Overall dimension (mm) | 1043 × 932 × 1174 | 1043 × 932 × 1174 | 1043 × 932 × 1174 | 1151× 955 × 1174 | 1151× 955 × 1174 |
| Weight (kg) | 850 | 850 | 850 | 1060 | 1060 |
