| 原産地: | 中国(本土) | 銘柄: | creking | モデル番号: | Creaking-OF-P5 | 表示機能: | ビデオ | 管の破片色: | フルカラー | ピクセル: | 5 | スクリーン次元: | カスタムサイズ | 使用法: | 屋外 | インストール: | 取付ラック | アプリケーション: | 広告タクシー屋根 | ipコード: | ip 65 | 明るさ: | > 5500cd/平方メートル | 視野角: | 140/140度 | 視聴距離: | > 5メートル | 電源consomption: | 240ワット/セット | ledタイプ: | SMD2828 | ピクセル作曲: | 1R1G1B-3で1 | creking: | をプロフェッショナルled工場以来2004 |
包装
| 包装: | 木製パッケージ |

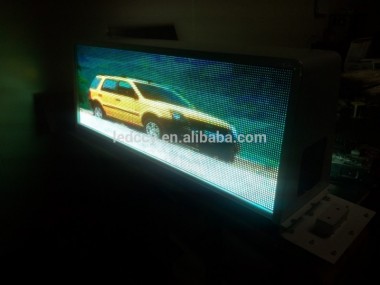

Technical Data for Taxi roof advertising screen taxi top advertising signs
[1]Optical Characteristics
NO | Item | Symbol | Red | Green | Blue | Unit | Remark |
1 | Brightness | IV | 300@20mA | 900@20mA | 180@10mA | mcd |
|
2 | Wave Length | λd | 621-625 | 521-523 | 465-468 | nm | |
3 | View Angle | 2θ1/2 | 140 | 140 | 140 | deg |
[2]Module Parameters
NO | Item | Description |
1 | Display color | Full color |
2 | Pixel pitch | 5mm |
3 | Module resolution | 32(W) ×32 (H) pixels |
4 | Module size | (W)160mm×(H)160mm×(T)15mm |
5 | View angle | 140deg(H/V) |
6 | LED type | Outdoor SMD2828 |
7 | Brightness | 5500CD/sqm |
8 | Driving method | 1/8 Scan, constant current |
9 | Power consumption | 30W±10% |
10 | Protection material | 3-resisting lacquer/Glass |
11 | Module weight | 400g |
[3]Module Electrical Parameters
NO | Item | Symbol | Parameters | Unit |
1 | Input voltage | VCC | 5V±0.25 | V |
2 | Module current | Imax | 6.0 | A |
3 | Clock frequency | CLK | 20m | HZ |
4 | Operating temperature | Topr | -10 ~ +60 | |
5 | Storage temperature | Tstg | -20 ~ +80 |
[4]Screen Body Parameters
NO | Item | Description |
1 | Cabinet size | 1003×393×180mm |
2. | Display size | 960mm×320mm (×2 sides) |
3 | Cabinet resolution | 192×64 pixels (×2 sides) |
4 | Power Consumption | Max:700W/Ave:240W |
5 | Power supply | DC9V-36V |
6 | Communication mode | 3G + USB disk |
7 | Protection level | IP65 |
8 | Heat-dissipating method | Air-Cooled |
9 | Weight | 22.8KG |
10 | Installation | Fixed on the mounting rack |
[5]Special control system for taxi screen : (USB disk+3G)
1. Gradually brighten function
When you turn on the screen, it is not directly to reach the brightness, but through the way of gradual slow light, until you reach the specified brightness, the purpose is to protect the car electrical level and power.
2. Wide voltage input:
Aiming at the condition of the vehicle voltage is not stable, control card will use the wide voltage power supply chip, it can support 3v ~7v input voltage.
3. Delay power-off protection function:
Control card can still work for more than 5s in the case of a power off, for car environment can be avoided system restart because of the instantaneous power.
4. Localization function:
Support advertising localization, the user can assign to play specified ads by the region.
5. USB+3G wireless interface:
Control card has USB disk+3G wireless interface, it will improve conveniences of use.
