| 原産地: | 中国(本土) | 銘柄: | jdk |
包装
| 包装: | Box/carton/木製ケース |

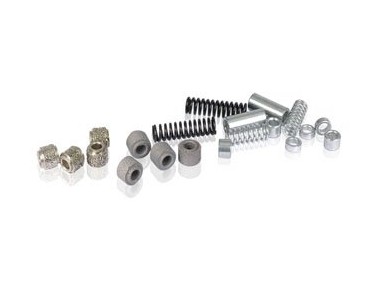

diamond wire saw, diamond beads
Features: flexibility, unlimited by the size of workpiece, can be used for dressing and forming for abnormal profiles.
Bead fixing methods: plastic injection,spring holding up, plastic (rubber) injection plus spring holding up.
Specification | Application | Fixing methods | Beads/meter |
Φ11.5mm | Reinforced concrete cutting | Rubber injection | 40 |
Φ11.5mm | Granite quarrying | Rubber injection | 40 |
Φ11mm/Φ10.5mm | Marble quarrying | Rubber injection | 40 |
Φ11mm/Φ10.5mm | Marble quarrying | Spring holding up | 28 |
Φ10.5mm | Granite block squaring | Plastic injection | 37 |
Φ10.5mm | Marble block squaring | Plastic injection | 33 |
Φ7Φ9mm | Granite profiling | Plastic injection | 37 |
Φ7Φ8.5mm | Marble profiling | Plastic injection | 33 |
Technology Parameter(quarrying)
Cutting material | Linear speed(m/s) | Cutting speed(m2/h) | Wire life(m2/m) |
Hard granite | 20-24 | 1-2 | 5-9 |
Mid-hard granite | 22-26 | 2-4 | 6-12 |
Soft granite | 24-28 | 4-8 | 8-18 |
Hard marble | 28-23 | 4-8 | 20-30 |
Mid-hard marble | 30-35 | 6-10 | 25-35 |
Soft marble | 33-38 | 8-12 | 30-45 |
