| 原産地: | 中国(本土) | 銘柄: | jdk | サイズ: | 250〜4200ミリメートル | 刃材料: | 合金鋼鉄 |
包装
| 包装: | Box/carton/合板ケース |

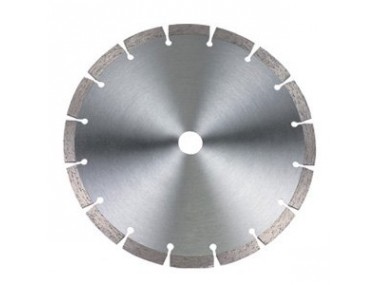

Diamond Circular Saw Blade for Marble Cutting
(Diamond Saw Blades for edge cutting of slabs of Marble, Limestone, Kinds of Soft Stones without quartz, Suitable for Bridge Cutting Machine and Manual Handling Machine)
The following is the specification of Diamond Saw Blades & Segments for Marble cutting:
Outer diameter (mm) | Segment Dimension L x W x H (mm) | Core Thickness (mm) | Segment No. | Application |
300 | 40 x 3.2 x 8/10 | 2.2/2.4 | 22 | For trimming and slabbing marble & soft stone etc. |
350 | 40 x 3.2 x 8/10 | 2.2/2.4 | 25 | |
400 | 40 x 3.6 x 8/10 | 2.6/2.8 | 29 | |
450 | 40 x 4.0 x 8/10 | 2.8/3.0 | 32 | |
500 | 40 x 4.0 x 8/10 | 3.0 | 36 | |
550 | 40 x 4.0 x 8/10 | 3.0 | 40 | |
600 | 40 x 4.6 x 8/10 | 3.6 | 42 | |
700 | 40 x 5.0 x 8/10 | 4.0 | 50 | |
800 | 40 x 6.0 x 8/10 | 4.5 | 57 |
Wet use only.
The features:
Easy and smooth cutting, Long lifespan and stable performance, Good cutting result.
Silent saw blade is available.
The above specification is only for Reference, other or special specification can be ordered by customers.
.
