    Camlockおよび溝のカップリング-軸継手
    商品番号: 10568882
    仕入れる商品へのお問い合わせについて、
    お電話の場合:スタッフに商品番号をお伝えください。
    商品の詳細

    原産地: 中国(本土) 銘柄: HX モデル番号: F
    標準的なか標準外: 標準 適用範囲が広くか堅い: 適用範囲が広い 材料: ステンレス
    構造: 普遍的 サイズ: " 8 "への1/2 タイプ: F
    項目: ホースカップリング 材料: アルミニウム シーリング: NBR、EPDM、Viton
    ピン、リングおよび安全クリップ: めっきされる鋼鉄

    包装

    包装: 29.2*29.2*19CM

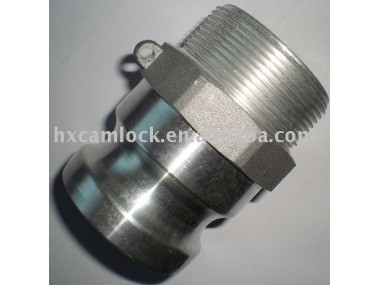

    Camlock coupling



    We are Fuzhou Hongxing Machinery Co., Ltd.  in Fuzhou, Fujian Province, China. We mainly supply camlock couplings (cam & groove quick couplings), guillemin coupling, Bauer type coupling, chicago coupling, Ground joint coupling, sandblast coupling, King combination nipple, DIN2817 safety clamp, T-bolt superior clamp, double bolt clamp, whipcheck safety cable, washdown gun, etc.





      1. standard:



    Our Camlock Coupling are made to standard of A-A-5932( superseding MIL-C-27487 )or DIN2828



       2. size:



    1/2",3/4",1",1-1/4",1-/2",2",2-1/2",3",4",5",6".



       3. Type:

     A.B ,C ,D, E,F, DC,DP



    4. Body materia:

    Aluminum







     5.Cam levers:



    We use stainless steel cam levers.





    6.Pins,Rings and  Safety clips:



    We use stainless steel pins,steel plated rings and safety clips.(Note:Safety clips are only available when required by the client, the client have to pay additional if need safety clips)





      7.Sealings:



    NBR



    EPDm



    VITon

    PTFE envelop gasket,Other materials are available on request.





     8.Theads:



    NPT



    BSP

    (We usually make the female thread parallel BSPP,male  thread tapered BSPT)
