| 適用: | 高圧 | 原産地: | 中国(本土) | 銘柄: | ヤーン | モデル番号: | ヤーン | 引張強さ: | 高 | タイプ: | 絶縁材テープ | 材料: | ポリエステル糸 | テープ: | ポリエステルテープを縮小 |
包装
| 包装: | ポリエステル収縮テープをパッケージはカートンパレット内 |

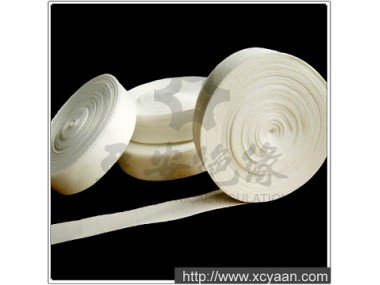

Polyester shrinking tape
The Insulating tape of thermal contraction is made from a special compound fiber of thermal contraction. After binding and dried at 105 for 10 minutes, it will be shrunk to 70%,which is good at a solid binding and at a compatibility with transformers. In this way, it will be utilized in the transformer oil at 105 for a long time.
Insulating shrinking tape Properties:
NO. | Items | Units | Values |
1 |
Broken warp | / |
Every tray is made up of two segments, the length of each is not less than 3 meters |
2 | Broken-ends | / | No more than 200mm single broken end, no more than 30mm two broken ends |
3 | Besmirch | / | No oil stain, no rust |
4 | Pinholing | / | No broken warp and end at the same time, no more than 3 pinholing |
5 | Shrinkage | % | ≥30 |
6 | Tensile strength | N/10mm | ≥200 |
Insulating shrinking tape applications:
-As the insulating binding materials in electric motor, transformer, auxiliary appliance, etc.
For more informations of the insulating shrinking tape pls contact with Ms.Jenny
