| 出力電圧: | 230v | 適用: | テレコミュニケーション | 原産地: | フィリピン | 銘柄: | apc | モデル番号: | スマート- ups3000 | 重量: | さ66キロ | 段階: | 単一フェーズ | タイプ: | オンラインで | 保護: | 過電流 | 色: | 黒 | パワー: | ワット2700 | 容量: | 3kva | ブランド: | apc | パッキング: | 標準的な輸出catrton | ジェシーに連絡: | +8618813570959 | 品質: | A+グレード | 保証: | 12ヶ月 | 入力と出力: | 230v | 重量: | さ66キロ |
包装
| 包装: | 標準的な輸出カートンのパッケージ |

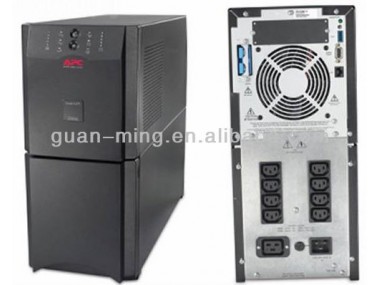

Popular online UPS 3KVA APC Brand 2700 Watts
| Model |
| APC UPS 650VA(White) |
| APC UPS BR650 CL (Black) |
| APC Smart UPS 750VA |
| APC Smart UPS 1000VA |
| APC Smart UPS 1500VA |
| APC Smart UPS 2200VA |
| APC Smart UPS 3000VA |
| APC Smart UPS 5000VA |
| APC SURT3000LI |
| APC SURT5000LI |
| APC SURT6000LI |
| APC SURT8000LI |
| APC SURT10000LI |
Output
Output Power Capacity | 2700 Watts / 3000 VA |
Max Configurable Power | 2700 Watts / 3000 VA |
Nominal Output Voltage | 230V |
Output Voltage Note | Configurable for 220 : 230 or 240 nominal output voltage |
Efficiency at Full Load | 95% |
Output Voltage Distortion | Less than 5% at full load |
Output Frequency (sync to mains) | 47 - 53 Hz for 50 Hz nominal,57 - 63 Hz for 60 Hz nominal |
Waveform Type | Sine wave |
Output Connections | (8) IEC 320 C13 (1) IEC 320 C19 (2) IEC Jumpers |
Input
Nominal Input Voltage | 230V |
Input Frequency | 50/60 Hz +/- 3 Hz (auto sensing) |
Input Connections | IEC-320 C20 Schuko CEE 7 / EU1-16P British BS1363A |
Input voltage range for main operations | 160 - 285V |
Input voltage adjustable range for mains operation | 151 - 302V |
Batteries & Runtime
Battery Type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leak proof |
Typical recharge time | 3 hour(s) |
RBC™ Quantity | 1 |
Replacement Battery | RBC55 |
Communications & Management
Interface Port(s) | DB-9 RS-232,SmartSlot,USB |
Available SmartSlot™ Interface Quantity | 1 |
Control panel | LED status display with load and battery bar-graphs and On Line : On Battery : replac Battery : and Overload Indicators |
Audible Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
Emergency Power Off (EPO) | Yes |
Surge Protection and Filtering
Surge energy rating | 365 Joules |
Filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Physical
Maximum Height | 432.00 mm |
Maximum Width | 196.00 mm |
Maximum Depth | 544.00 mm |
Net Weight | 55.92 KG |
Shipping Weight | 65.00 KG |
Shipping Height | 680.00 mm |
Shipping Width | 380.00 mm |
Shipping Depth | 760.00 mm |
Color | black |
Units per Pallet | 3.00 |
Environmental
Operating Environment | 0 - 40 °C |
Operating Relative Humidity | 0 - 95% |
Operating Elevation | 0-3000 meters |
Storage Temperature | -15 - 45 °C |
Storage Relative Humidity | 0 - 95% |
Storage Elevation | 0-15000 meters |
Audible noise at 1 meter from surface of unit | 53.00 dBA
|
