| 出力電圧: | 230v | 適用: | コンピュータ | 原産地: | フィリピン | 銘柄: | apc | モデル番号: | スマート- ups750 | 重量: | 14kg | 段階: | 単一フェーズ | タイプ: | スタンバイ | 保護: | 短絡 | 色: | 黒 | ワット: | ワット500 | アプリケーション: | ・コンピュータネットワーキング | ブランド: | apc | パッキング: | 標準的な輸出カートン | 配達: | 3から15日 | 品質: | A+グレード | 船積み: | ・海によって空気によって | 入力と出力: | 230v | 重量: | 14kg |
包装
| 包装: | 標準的な輸出カートンのパッキング、 2内1個大きな外のカートン、 28kg/カートン、 0.0892cbm/カートン、 20ftについて700個読み込むことができ |
online APC Smart UPS 750VA for Computer Power
| Model |
| APC UPS 650VA(White) |
| APC UPS BR650 CL (Black) |
| APC Smart UPS 750VA |
| APC Smart UPS 1000VA |
| APC Smart UPS 1500VA |
| APC Smart UPS 2200VA |
| APC Smart UPS 3000VA |
| APC Smart UPS 5000VA |
| APC SURT3000LI |
| APC SURT5000LI |
| APC SURT6000LI |
| APC SURT8000LI |
| APC SURT10000LI |

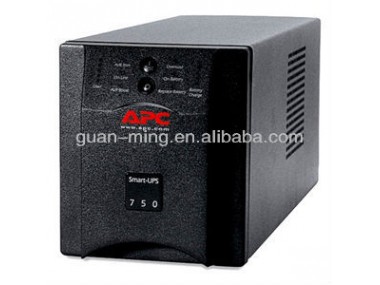

APC Smart-UPS, 500 Watts / 750 VA, Input 230V / Output 230V, Interface Port DB-9 RS-232, Smart Slot
Includes: CD with software, Smart UPS signaling RS-232 cable, User Manual
Output
Output Power Capacity | 500 Watts / 750 VA |
Max Configurable Power | 500 Watts / 750 VA |
Nominal Output Voltage | 230V |
Output Voltage Note | Configurable for 220 : 230 or 240 nominal output voltage |
Output Voltage Distortion | Less than 5% at full load |
Output Frequency (sync to mains) | 47 - 53 Hz for 50 Hz nominal,57 - 63 Hz for 60 Hz nominal |
Waveform Type | Sine wave |
Output Connections | (6) IEC 320 C13 (2) IEC Jumpers |
Input
Nominal Input Voltage | 230V |
Input Frequency | 50/60 Hz +/- 3 Hz (auto sensing) |
Input Connections | IEC-320-C14 inlet |
Input voltage range for main operations | 160 - 285V |
Input voltage adjustable range for mains operation | 151 - 302V |
Batteries & Runtime
Battery Type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leak proof
|
Typical recharge time | 3 hour(s) |
Replacement Battery | RBC48 |
RBC™ Quantity | 1 |
Communications & Management
Interface Port(s) | DB-9 RS-232,SmartSlot,USB |
Available SmartSlot™ Interface Quantity | 1 |
Control panel | LED status display with load and battery bar-graphs and On Line : On Battery : replac Battery : and Overload Indicators |
Audible Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
Emergency Power Off (EPO) | Optional |
Surge Protection and Filtering
Surge energy rating | 340 Joules |
Filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Physical
Maximum Height | 157.00 mm |
Maximum Width | 137.00 mm |
Maximum Depth | 361.00 mm |
Net Weight | 13.18 KG |
Shipping Weight | 14.55 KG |
Shipping Height | 290.00 mm |
Shipping Width | 270.00 mm |
Shipping Depth | 500.00 mm |
Color | Black |
Units per Pallet | 40.00 |
Environmental
Operating Environment | 0 - 40 °C |
Operating Relative Humidity | 0 - 95% |
Operating Elevation | 0-3000 meters |
Storage Temperature | -15 - 45 °C |
Storage Relative Humidity | 0 - 95% |
Storage Elevation | 0-15000 meters |
Audible noise at 1 meter from surface of unit | 40.00 dBA |
online Thermal Dissipation | 90.00 BTU/hr |
