| 出力電圧: | 50v~80v | 原産地: | 中国(本土) | 銘柄: | dadekan | モデル番号: | Dek-tq22b-5080-028 | 入力電圧: | 90vac~305vac | 出力タイプ: | 二重 | 出力電流: | 280ma | 出力電力: | 14~22.4w |
包装
| 包装: | カートンの箱付き |

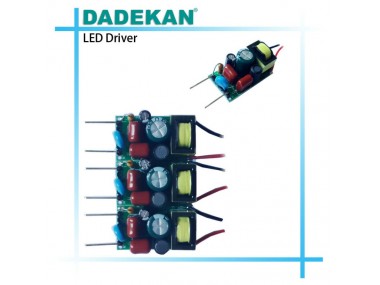

MODEL | DEK-TQ22B-5080-028 | ||||
Input | Input Voltage | 90VAC~305VAC | |||
Voltage Range | 100VAC~277VAC | ||||
Start-up Voltage(-25~70) | 90VAC | ||||
Frequency Range | 47Hz~63Hz | ||||
Power Factor(@25) | >0.9@220VAC, Full Load | ||||
AC Current (@25) | 0.5A @100VAC Full Load | ||||
Inrush Current (@ 25) | 50A @277VAC Full Load | ||||
Output | Output Voltage Range | 50V~80V | |||
Output Current | 280mA | ||||
Output Power | 14~22.4W | ||||
Conversion Efficiency (@25) | 90% @220VAC, Full Load | ||||
No-load Output Voltage | 100V Max. | ||||
Line Regulation (@-25~70) | ±5% | ||||
Accuracy Constant(@-25~70) | ±5% | ||||
Set-up Time(@25) | 3S Max.@100~277VAC, Full Load | ||||
Temperature Coefficient(@-25~70) | ±0.03%/ | ||||
Output Ripple & Noise | 0<Ta≤70 | ≤10VP-P | |||
-25≤Ta≤0 | / | ||||
Protection (-25~70) | Input Electrical | Low Voltage Protection | / | ||
Over Voltage Protection | / | ||||
Output Electrical | Shorted Circuit Protection | Hiccup, Auto Recovery | |||
No-load Protection | Constant Voltage | ||||
Over Temperature Protection | / | ||||
Environmental Requirement | Storage Temp. & Hum. | -20~70 10%~95%RH No condensing | |||
Operating amb. Temp. & Hum. | -10~45 20%~90%RH No condensing | ||||
Altitude | 3000m | ||||
IPX | / | ||||
Safety &. EMC | Isolation Resistance | / | |||
Withstand Voltage | / | ||||
Ground Impedance | / | ||||
Safety Standards | IEC 61347-2-13/GB19510.14/UL8750 | ||||
EMI | CE | EN 55015:1998,+A1:2000 +A2:2003,CLASS B | |||
RE | EN 55015:1998,+A1:2000 +A2:2003,CLASS B | ||||
Harmonic Current | EN6100-3-2 | ||||
EMS | CS | EN61000-4-6 | |||
RS | EN61000-4-3 | ||||
SURGE | EN61000-4-5 Test: Power Line to Line:500V | ||||
Voltage fluctuations & flicker | EN61000-3-3 | ||||
Power Frequency Harassment | EN61000-4-8 | ||||
EFT | EN61000-4-4 | ||||
Other | Dimensions (L * W * H) | 34mm X 20mm X 19mm;±1mm | |||
Weight | / | ||||
Package | / | ||||
Cooling Method | Ventilation Cooling | ||||
Reliability | Burn-in | The power supply shall go a minimum of 4 Hours burn-in test under full load condition. | |||
Design MTBF | 20,000Hrs @25, MIL-HDBK-217 Method 2 Components Stress Method | ||||
Design electrolytic capacitor life | 17520Hrs @50 Full load and units continuously working | ||||
Note | Measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uF & 10uF parallel capacitor. Test spare parts: test voltage for 500 VDC, 65% RH @ 25 . The SPS is considered a component which will be installed into final equipment. The equipment must be re-confirmed that it still meets EMC directives. | ||||
Minimum Negative Load Requirements | None | ||||
Accessories | / | ||||
