| 原産地: | 中国(本土) | 銘柄: | dsl | モデル番号: | b67c | 最大トルク: | 100 | タイプ: | Airハンマー | 無積載速度: | 50 | モデル: | b67c | 長さ以上( mm): | 615mm | 総重量( kg): | 30kg | シリンダー径。( mm): | 50.8mm | 作業圧力( mpa): | 0.63 | 衝撃エネルギー( j): | 37±10% | インパクト電力( kw): | 0.9±10% | が吹く周波数( hz): | 24±5% | 空気消費量( l/s): | 42±155 | シャンクサイズ( mm): | 32*152 |
包装
| 包装: | W/cまたは他人 |
B67C hand operated road construction equipment price
INSTRUCTION:
1,The paving breaker model B67C is tools with compressed air as its power.
2,The compressed air is distributed alternatively through the distributi9ng vaive into either end of the cylinder assembily so that the hammer inside is made to carry on a reciprocal motion which impacts the shank of the steel chisel by the tappet drives the chisel into the concrate foundation and makes them split into huge pieces.
technical parameter
| Specification | |
| Model | B67C |
| Over Length(mm) | 615mm |
| Total weight (kg) | 30kg |
| Cylinder Dia.(mm) | 50.8mm |
| Working pressure(Mpa) | 0.63 |
| Impact Energy (J) | 37±10% |
| Impact Power(Kw) | 0.9±10% |
| Blows frequency(Hz) | 24±5% |
| Air Consumption(L/S) | 42±155 |
| Shank size(mm) | 32*152 |
| Air Pipe Dia.(mm) | 19 |
| Bit Shank | 32*152mm |

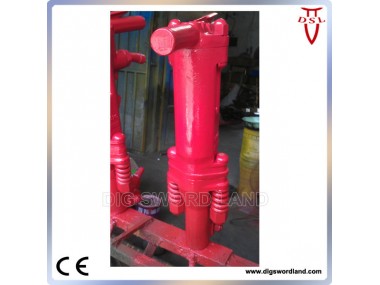

photos
