原産地: | 中国(本土) | 銘柄: | デロング | モデル番号: | Del-dc1210 | サイズ: | カスタマイズされた | タイプ: | 李イオン | わずかな電圧: | 12vバッテリー/customized | わずかな容量: | 10ah/customized | コネクタ: | 5.5*2.1mmjack+5.5*2.1mmdcdcプラグ | バッテリータイプ: | グレード電池セル( 実容量) | 寸法: | カスタマイズされた | 重量: | 0.9kg | サイクル寿命: | 500回以上 | バッテリー充電器: | 私達12.6v/eu/英国プラグ | 保証: | 1年間 | 認証: | Ce/rohs/ec/等 |
包装
包装: | 標準的な輸出パッケージ |
OEM/ODM 12volt lithium ion battery pack 10A for LED light/panel&Camera/IP Camera
Parameter of 12V battery 10A lithium ion battery pack
Product Description
model | DEL-D1210 |
Type | Li-ion battery with PCM |
Battery Cells | A Grade quality cells |
Nominal voltage | 11.1 volt |
Capacity | 10AH/customized |
Input | 12.6 v |
Out-put | 12.6-10.8V |
Max continuous charge/discharge current | 2.5A(adjustable) |
Charger Included | charger:US plug/EU plug/UK plug |
Connectors | 5.5*2.1mm DC jack+5.5*2.1mm DC plug |
Protection | 12VPCM,over-charge/discharge protection, over-heat protection |
Recharge cycle | More than 500 times |
LED Indicator | Available |
ON/OFF Switch | Available |
Key word | 12v battery |
Standard Charge Time | Around 5H |
Dimension | 21*62*115mm/as your requirement |
Operating temperature | -20 °C to 60 °C |
Charge temperature | -0 °C to 45 °C |
Storage temperature | -20 °C to 45 °C |
Operating humidity | 5% to 90%,non-condensing |
Applications | Led light, spot light, flashlight, portable DVD, Speaker, power bank, clock, Medical device, industory equipment,traffic indicator light, cameras, DV, toys, GPS, Cameras, interphone, alarm system, Pos machine,communicate equipement, IC terminal, eletric lock, wireless dishes ordering set, etc. |
Product feature and characterisitcs :
1)Stable BMS system with short-circuit protection ,over-charge protection ,over-discharge protection and over-current protection fuctions ,with 60A build-in balance BMS which will allow Max 30A discharge current also with execellent balance technology .
2) With at least More than 800times cycle life
3) It can run well under different temperature environment condition
4) No memory effect .
5) suitable for the device with 12V input such as Xneon ligh ,inverter ,surveillance camera

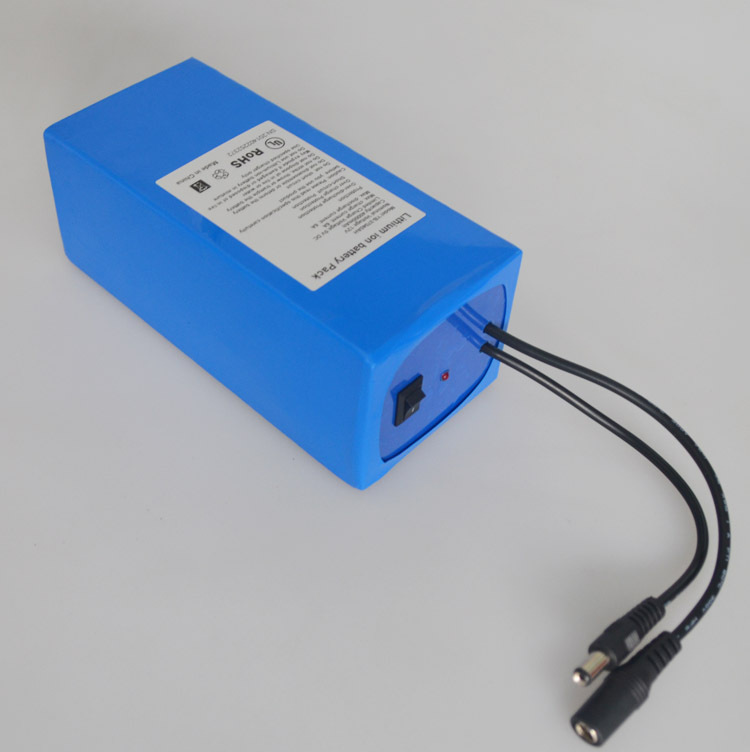

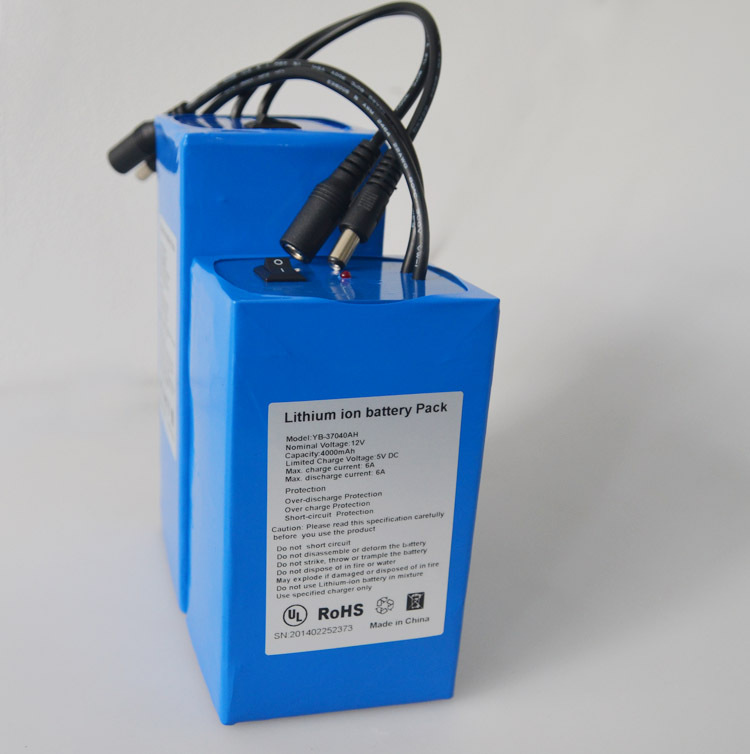

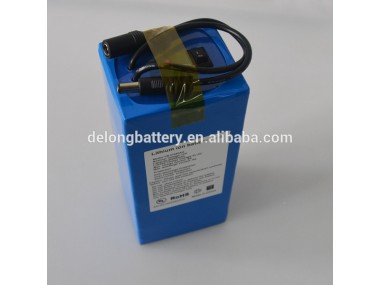

Product picture:
FAQ
FAQ:
1. Q: Can i get some samples for test?
A : Of course, the sample is available for test.
2. Q: Can i produce the battery pack whatever i asked for ?
A: Yes, we can customize the battery pack according to your requirement.
3. Q: The capacity of battery pack is real,right?
A: Yes, all of our products are used by the A grade 18650 cell which has the real capacity, if need, we can also use the samsung 18650 cells to customize the battery pack.
4. Q: Can we use the lithium polymer cell to customize the battery pack?
A: Of course yes. Tell me your special requirement, such as the dimension, continue current, weight, charging time, and so on, we will design the battery which can be best suitable for your project.
