原産地: | 中国(本土) | 電圧: | 12V | 銘柄: | デロング | モデル番号: | dl1240 | 容量: | <30ah> | サイズ: | 158*80*35mm | タイプ: | カーバッテリーリチウムイオン | 車は作る: | toyoto | アプリケーション: | 多機能のオートカーバッテリー12vジャンプスターター | に適した: | スマートフォン用のポータブルパワーバンク | のために使用され: | タブレット用の外部バッテリーパックとpc、 psp | 名: | ポータブル充電ステーション | 機能: | 車始まるバッテリー緊急のオート | サイズ: | 158*80*35mm | 電圧: | 12v19v5v |
包装
包装: | 標準的な輸出パッケージ |
Product Description

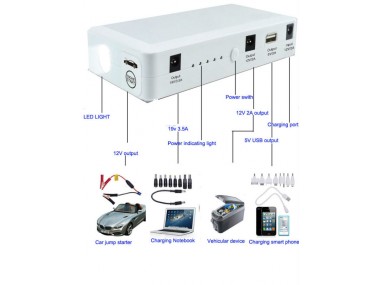

Basic description of our 12V multi-functional jump starter which could be widely applied on other field ,such as for portable power bank of mobile phone ,external power bank for laptop and notebook ,portable charging station for vehicular device of the car :
Item | Specification | comment |
Name | Auto car jump starter | also portable power for smart phone ,talet ,laptop |
Size | 158*80*35mm | |
Input | 12V 2A | |
capacity | 14000mAh | High quality Lifepo4 cells |
Output | 12V 200A,5V 2A,19V 3.5A,12V 2A | |
Weight | 1.2KG | |
peak discharge current | 400A | less than 3S |
Cycle life | 3000times above | discharge and charge |
Charging time | around 3 hours | |
Starting current | 200A | |
Working temperature | 0-85 degree |
Product functions descriptions
E.Switch different lighting modes of the device :
Please pree the " switch" button for three seconds to use the LED light for illumination purpose
and also you can seclet the lighting status( light ,SOS, or turn off ) by press the "switch" button .
F trouble shooting :
Please contact the supplier immediately if the suggested solution below could not help you solve the problems
Common problem : there is without any reaction when press the power button ,
Reason : The voltage is too low ,low voltage protection function was activated and it will lead to cut-off of the power .
Solution : please do a charge for our device to re-activate it .
Warning :
1. When start the car ,please remember to insert the blue plug of the battery clip firmly and correctly ,otehrwise it will
affect the fuction of starting the car ,what's worse ,the plastic around the plug will be melt .
2.If failed to start the car ,please chek whether battery clip is connected well ,whether the battery connector is rsty or contaminated ,if so ,please clean it ,after trying three time ,if you still can not start the car ,do not force to continue starting ,it may damage the car ,please check if there is any other problem with the car
3.Do not connect the two battery clips directly otherwise it may cause the accident
4.Do not disassemble the device by your own,it may cause safety accident .
5.You won't enjoy the warrranty if you disassemble the device by your own .
Warranty :
You can get 12 months warranty for this product since the purchased date :
Please provide your warranty card with full information ,our company will offer 12 months quality warranty period for user .
Warranty coverage :
1. Quality issue comes out under normal using conditions
2. Quality problem occurs because of any misuse won't covered in our warranty items
3. You could not enjoy the warranty if you disaasemble the device by your own
4. you won't enjoy the warranty if you tear off the mark on the device
5. we could offer repair service for our client by free of charge if the quality problem arised because of design and
manufacuring defect with our product etc .
