| 原産地: | 中国(本土) | 銘柄: | ワンダ | モデル番号: | Lss0.03- 0.4- y | 重量: | 201 | タイプ: | 蒸気ボイラ | 様式: | 縦 | 認証: | iso | 使用法: | 加熱水 | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 構造: | 水管 | 条件: | 新しい | 出力: | 蒸気 | 燃料: | 燃料油、 ガス | 圧力: | 常圧 | 次元(L*W*H): | 700*600*1340 |
包装
| 包装: | 木製ケース |

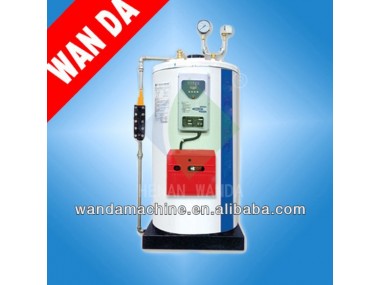

New design gas/oil small steam boiler
Introduction:
This series of high efficiency and energy saving of steam boiler used new type refractory material, without pre load, heat
efficiency, stable air pressure, and the steam in a short period of time can produce high quality. When burning, low noise
, no pollution, flue gas, complete combustion, so that it could save fuel costs, improve the economy efficiency. This is a
kind of product which is environmental protection and energy saving.
Features:
1. Compact and Beautiful :
The Innovation and improvement of strengthened the practicability, novel design, compact structure, Stereo cabinet,
especially small volume, no foundation, convenient installation, beautiful appearance, soft colors, coordinated with
environment, and artistic.
2. Safe and Reliable:
using full automatic microcomputer control system, automatic control of boiler operation, complete function. Setting
the time now, start time, stop time. It also has the self diagnosis function. Once the boiler operation is abnormal
phenomenon, the water supply and combustion will be automatic interruption, and alarming through sending out
sound and light alarm. So it is safe and reliable, and simple operation.
3. Durable:
design carefully, strict selection, carefully developed with high technology, excellent corrosion resistance, durability
and ruggedness.
Technial date:
Project/ Model | Rated evaporation(kg/h) | Working pressure(Mpa) | Hydraulic test pressure(Mpa) | Oil consumption(kg/h) | Heat efficiency (%) | Water capacity (L) |
LSS0.03-0.4-Y | 30 | 0.40 | 0.60 | 2..12 | 86 | 17.4 |
LSS0.05-0.4-Y | 50 | 3.53 | 86 | 28.8 | ||
LSS0.1-0.4-Y | 100 | 7.07 | 86 | 80.2 | ||
LSS0.2-0.4-Y | 200 | 14.14 | 86 | 103 | ||
LSS0.3-0.7-Y | 300 | 0.70 | 1.10 | 21.21 | 86 | 134.7 |
LSS0.5-0.7-Y | 500 | 35.36 | 86 | 234 | ||
LSS1.0-0.7-Y | 1000 | 70.70 | 86 | 431 | ||
Floss hole(mm) | Steam outlet(DN | Blast-hole(DN) | Relief valve(DN) | Dimension W×L×H(mm) | Weight (kg) | |
LSS0.03-0.4-Y | 89 | 20 | 20 | 25 | 700×600×1340 | 201 |
LSS0.05-0.4-Y | 108 | 20 | 20 | 25 | 850×700×1380 | 335 |
LSS0.1-0.4-Y | 133 | 25 | 20 | 25 | 950×800×1610 | 494 |
LSS0.2-0.4-Y | 159 | 32 | 25 | 25 | 950×800×2000 | 745 |
LSS0.3-0.7-Y | 219 | 40 | 25 | 40 | 1150×1000×2310 | 1109 |
LSS0.5-0.7-Y | 300 | 40 | 25 | 40 | 1550×1550×2520 | 1399 |
LSS1.0-0.7-Y | 300 | 50 | 25 | 40 | 1650×1650×2620 | 2084 |
