| 原産地: | 中国(本土) | 銘柄: | ty | 負荷タイプ: | 圧縮 | 様式: | シリンダー | 材料: | 鉄鋼 | 使用法: | 産業 | 素材: | 鋼 | スプリング式: | シリンダー | 負荷型: | 圧縮 | 使用法: | 壁ベッド/マーフィーベッド | 力: | あなたの要求として | 内部: | ガス | ガスリソース: | 窒素 | チューブ: | 塗装 |
包装
| 包装: | ポリ袋に一枚、 カートンで100個。 またはあなたの要求として |

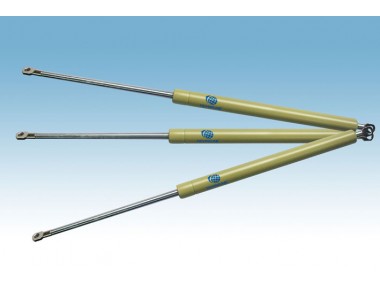

gas spring for wall bed murphy bed
High quality gas spring for bed hydraulic lift/gas lift
This separate the oil from the gas inside the spring ,
so that the damping can be very closely controlled in either compression or extension .
specifications:
Usage:
Product description:
Cylinder material: Steel, SS304, SS316
Shaft material: Steel, SS304, SS316
Cylinder finishing: Black ,Silver or other color
Shaft finishing: Chrome/QPQ
1.extended length:564mm
2.stroke length:195mm
3.force:1000n/1200n
4.end fittings: metal eyelet
All goods can be customized.
Salt spray time: achieving more than 72 hours.
Fatigue test: decay less than 9% after 20,000 cycles.
Service life: at least 50,000 cycles in normal environment.
Working temperature range: –30 °C - +80 °C.
Main Specifications and Dimensions:
Brief introduction:
lift gas spring also called gas struts, it can play a role in support, cushioning, there is no stop at trip. It used comfortable, convenient installation. Mainly used in aircraft, automobile, engineering machinery, furniture and office supplies industry.
Delivery:
1000 PCS, 7 days.
Shipment: We can accept your appionted forwarder.
gas spring for wall bed murphy bed :
