| 原産地: | 中国(本土) | 銘柄: | H-QUALITYのボルトタイプアンカー手錠G-2130 | モデル番号: | G2130 |
包装
| 包装: | あなたの要求としてまたはカートンに入れなさい |
Product Description

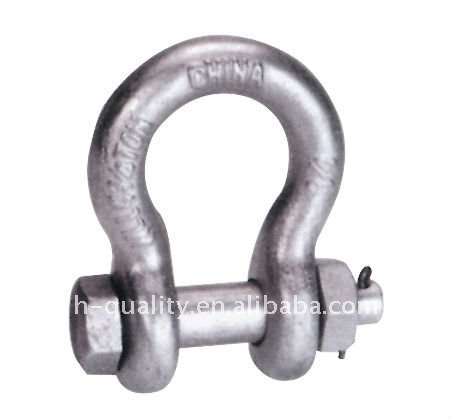

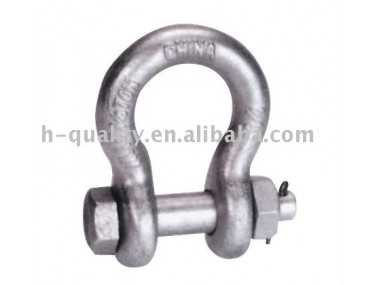

Bolt type anchor shackles with thin head bolt-nut with cotter pin.Meets the performance requirements of Federal Specification RR-C-271D Type IVA,Grade A,Class 3,expect for those provisions required of the contractor.
| Part No. | SIZE (IN.) | WORKING LOAD LIMIT(T) | WEIGHT EACH(IBS) | A B | C D | DIMENSIONS E F | H L | N | TOLERANCE C A | ||
| RBAS0316 | 3/16 | 1/3 | 0.06 | 0.38 0.25 | 0.88 0.19 | 0.6 0.56 | 1.47 0.98 | 0.19 | 0.06 0.06 | ||
| RBAS0104 | 1/4 | 1/2 | 0.11 | 0.47 0.31 | 1.13 0.25 | 0.78 0.61 | 1.84 1.28 | 0.25 | 0.06 0.06 | ||
| RBAS0516 | 5/16 | 3/4 | 0.22 | 0.53 0.38 | 1.22 0.31 | 0.84 0.75 | 2.09 1.47 | 0.31 | 0.06 0.06 | ||
| RBAS0308 | 3/8 | 1 | 0.33 | 0.66 0.44 | 1.44 0.38 | 1.03 0.91 | 2.49 1.78 | 0.38 | 0.13 0.06 | ||
| RBAS0716 | 7/16 | 1-1/2 | 0.49 | 0.75 0.50 | 1.69 0.44 | 1.16 1.06 | 2.91 2.03 | 0.44 | 0.13 0.06 | ||
| RBAS0102 | 1/2 | 2 | 0.79 | 0.81 0.64 | 1.88 0.50 | 1.31 1.19 | 3.28 2.31 | 0.50 | 0.13 0.06 | ||
| RBAS0508 | 5/8 | 3-1/4 | 1.68 | 1.06 0.77 | 2.38 0.63 | 1.69 1.50 | 4.19 2.94 | 0.69 | 0.13 0.06 | ||
| RBAS0304 | 3/4 | 4-3/4 | 2.72 | 1.25 0.89 | 2.81 0.75 | 2.00 1.81 | 4.97 3.50 | 0.81 | 0.25 0.06 | ||
| RBAS0708 | 7/8 | 6-1/2 | 3.95 | 1.44 1.02 | 3.31 0.88 | 2.28 2.09 | 5.83 4.03 | 0.97 | 0.25 0.06 | ||
| RBAS1000 | 1 | 8-1/2 | 5.66 | 1.69 1.15 | 3.75 1.00 | 2.69 2.38 | 6.56 4.69 | 1.06 | 0.25 0.06 | ||
| RBAS1108 | 1-1/8 | 9-1/2 | 8.27 | 1.81 1.25 | 4.25 1.13 | 2.91 2.69 | 7.47 5.16 | 1.25 | 0.25 0.06 | ||
| RBAS1104 | 1-1/4 | 12 | 11.71 | 2.03 1.40 | 4.69 1.29 | 3.25 3.00 | 8.25 5.75 | 1.38 | 0.25 0.06 | ||
| RBAS1308 | 1-3/8 | 13-1/2 | 15.83 | 2.25 1.53 | 5.25 1.42 | 3.63 3.31 | 9.16 6.38 | 1.50 | 0.25 0.13 | ||
| RBAS1102 | 1-1/2 | 17 | 19.00 | 2.38 1.66 | 5.75 1.53 | 3.88 3.63 | 10.00 6.88 | 1.62 | 0.25 0.13 | ||
| RBAS1304 | 1-3/4 | 25 | 33.91 | 2.88 2.04 | 7.00 1.84 | 5.00 4.19 | 12.34 8.80 | 2.25 | 0.25 0.13 | ||
| RBAS2000 | 2 | 35 | 52.25 | 3.25 2.30 | 7.75 2.08 | 5.75 4.81 | 13.68 10.15 | 2.40 | 0.25 0.13 | ||
| RBAS2102 | 2-1/2 | 55 | 98.25 | 4.13 2.80 | 10.50 2.71 | 7.25 5.69 | 17.90 12.75 | 3.13 | 0.25 0.25 | ||
| ...... | |||||||||||
| RBAS4000 | 4 | 150 | 338.00 | 5.50 4.26 | 14.50 4.00 | 10.00 9.00 | 25.68 18.00 | 4.56 | 0.25 0.25 |
Company Information
Constitute | The company headquarter Three wholly-owned manufacturing factories The joint-venture factories |
Top-notch technical and R&D team | 3 professor-level senior engineers 6 senior engineers 12 engineers |
Field | metallurgy, Electric Powder, Shipyard, Sea Port, Oil-field, Railway, Machinery, Auto, Energy, Aerospace, etc. |
Equipment | Hydraulic Extruders (3150T/2000T/500T), Friction Presses (1600T/1000T/630T/300T), Hydraulic Press Machines (3000T/1500T/600T), Drawing and Straightening Machines (100T/40T/10T), Intermediate Frequency Induction Furnaces (2T/1T/0.5T), Vacuum Annealing Furnaces (5T/2T/1T), Punching Machines (250T/160T/100T/80T/25T), Automatic Heat Treatment Equipment and Automatic Plastic Coating Line |
Test | Tensile test less than 300tons, Chemical analysis of such metal materials as steel, aluminum, copper, etc. metallurgical microstructure laboratory and ultrasonic defects detecting center. |
Certificate | ISO 9001-2008, BV, SGS, CE |

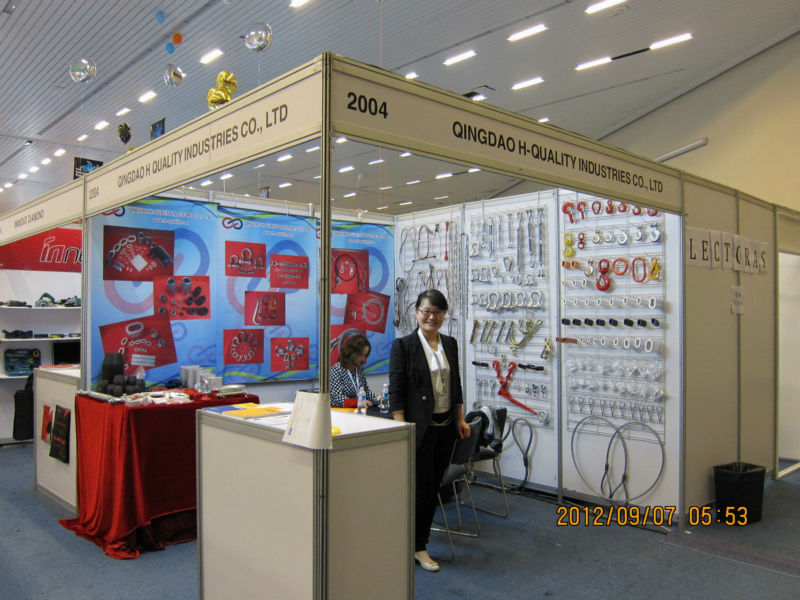

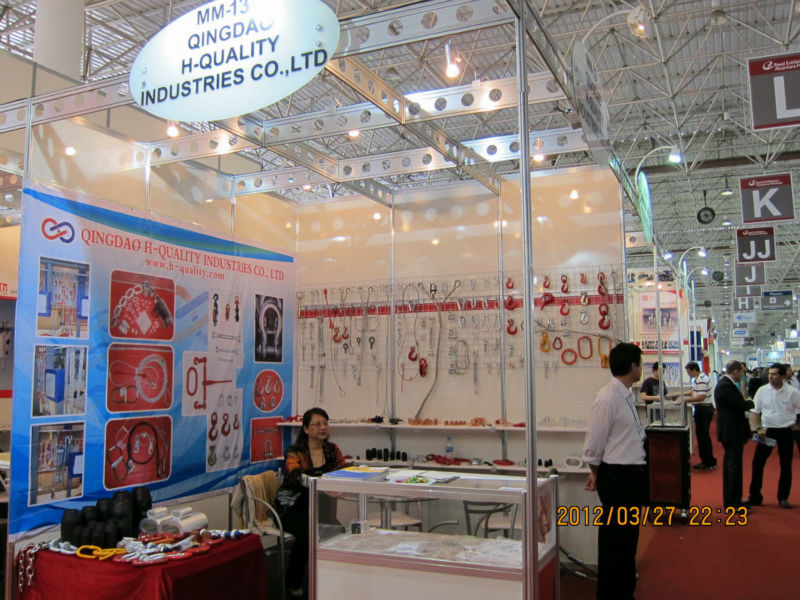

Exhibition FETCON BATIMAT 2012
