| 原産地: | 中国(本土) | 銘柄: | パゴダ または に従って買い手 | モデル番号: | din | 仕上げ: | hdg 、 例えば 、黒、 sherardized メカニカル亜鉛、計画 |
包装
| 包装: | パレット の有無に かかわら ず パレット |

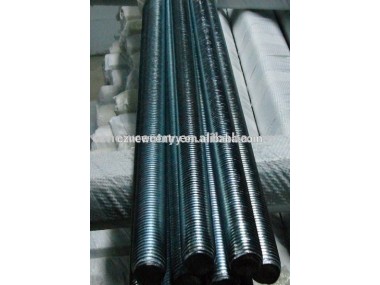

WE CAN SUPPLY SO MANY SIZE OF THE THREAD ROD AND HAVE EXPORTD THE THREAD ROD TO EUROPEAN, MIDDLE EAST, SOUTH ASIA, AFRICA AND SO ON WITH THE BEST QUALITY.
WE HAVE HIGH OUTPUT SO WE CAN SUPPLY THE prompt DELIVERY.
PAYMENT ITEM: L/C, D/P, T/T
SIZE: DIFFIRENT
PACKING: PALLET, CARTON
FINISH: HDG, EG,BLACK
1.various kinds of thread rod available.
2.high quality competive price.
3.material of thread rod:stainless steel ,carbon steel.
4.surface treatment:black,white blue,zinc nickel Passivation,Galvanized or according require.
5.standard: Din,ISO,JIS& ANSI,GB and BS.
6.packing of thread rod:general export packing plastic&pallet or according require
7.grade:4.6 to10.9
8.Dia;3mm to 56mm.5/32 'to 2'
9.length :30mm to 6000mm
SIZE | MAJOR DIAM | OITCH DIAM | MINOR DIAM | |||
| Min | Max | Min | Max | Min | Max |
M4*0.70 | 3.88 | 3.99 | 3.45 | 3.52 | 3.12 | 3.24 |
M5*0.80 | 4.83 | 4.98 | 4.37 | 4.45 | 3.96 | 4.13 |
M6*1.00 | 5.79 | 5.97 | 5.21 | 5.32 | 4.57 | 4.75 |
M8*1.25 | 7.76 | 7.97 | 7.04 | 7.16 | 6.23 | 6.44 |
M10*1.50 | 9.73 | 9.97 | 8.86 | 8.99 | 7.89 | 8.13 |
M12*1.75 | 11.70 | 11.96 | 10.86 | 10.83 | 8.92 | 9.20 |
M14*2.00 | 13.68 | 13.96 | 12.50 | 12.66 | 11.20 | 11.51 |
M16*2.00 | 15.68 | 15.96 | 14.50 | 14.66 | 13.20 | 13.51 |
M18*2.50 | 17.62 | 17.96 | 16.16 | 16.33 | 14.54 | 14.89 |
M20*2.50 | 19.62 | 19.96 | 18.16 | 18.33 | 16.54 | 16.89 |
M22*2.50 | 21.62 | 21.96 | 20.16 | 20.33 | 18.54 | 18.89 |
M24*3.00 | 23.58 | 23.95 | 21.80 | 22.00 | 19.86 | 20.27 |
M27*3.00 | 26.58 | 26.95 | 24.80 | 25.00 | 22.86 | 23.27 |
M30*3.50 | 29.52 | 29.95 | 27.46 | 27.67 | 25.19 | 25.65 |
M33*3.50 | 32.52 | 32.95 | 30.46 | 30.67 | 28.19 | 28.65 |
M36*4.00 | 35.48 | 35.95 | 33.10 | 33.34 |
|
|
M39*4.00 | 38.48 | 38.95 | 36.10 | 36.34 |
|
|
M42*4.50 | 41.44 | 41.94 | 38.78 | 39.01 |
|
|
M45*4.50 | 44.44 | 44.94 | 41.78 | 42.01 |
|
|
M48*5.00 | 47.40 | 47.93 | 44.43 | 44.68 |
|
|
M52*5.00 | 51.40 | 51.93 | 48.43 | 48.68 |
|
|
M56*5.50 | 55.37 | 55.93 | 52.09 | 52.35 |
|
|
