| 原産地: | 中国(本土) | 銘柄: | ipmacro | モデル番号: | Ihd-5301w | デコード機能: | フルhd1080p | hdmiコネクタ: | Hdmi1.3 | hddコネクタ: | sata | 蒸し能力: | rtsp、 http、 udp |
包装
| 包装: | 顧客の要求として |

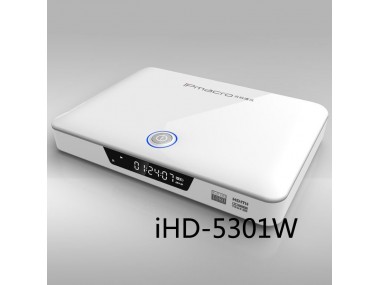

IPTV Set Top Box Brief
1. HW decode 1080P: MPEG1/2/4, WMV, VC-1, H264, AVC
2. Streaming play for mms,rtsp,http,udp
3. Browser based GUI, api for 2D accelerator, easy to work out iPhone like interface
4. P2P live broadcast / P2P VOD engine enable
5. Internet web content convert and fitting on TV
6. 2.5 HDD rack, easy to install
7. WIFI support (Optional)
8. Software decoder for FLV, RMVB and more
IPTV Set Top Box APPLICATIONS
(Can integrate most of the web content using the converter API)
P2P TV Station : Very low investment for online LIVE TV service
P2P VOD Service : Flexible server bandwidth for VOD service
Video : YouTube, CNN podcast, Sina TV, Sohu TV, ifeng, Tudou...
Photo: Picasaweb, Flickr
Audio : online radio service, online mp3 service
RSS feed : Yahoo! Weather, Yahoo! News, Yahoo! Xchange, MSNBC News ...
Browser-based GUI
CSS 2.0
Javascript 2.0
XML
Remote controller screen focus management API
2D accelerator API
Internet Web content convert API
AJAX enable
SQL Database Embedded
IPTV Set Top Box P2P Video Engine
Enable live TV service with low server bandwidth
P2P Video-On-Demand for asf,wmv,mkv
IPTV Set Top Box I/O interface
Ethernet : RJ-45 LAN(10/100 base-T Ethernet) x 1
Composite : RCA x 1
Audio Stereo : RCA x 1
VGA : x 1, also can be used as Component (YPbPr, 1080p)
HDMI 1.3 : x1
USB : Host x 1
DC JACK : 12V 2A x 1
IPTV Set Top Box Hardware Specification
| Processor | |
| Soc | 500MHz MIPS |
| Memory | |
| DRAM | 256MB DDR2 |
| FLASH | 256MB NAND |
| Video Codec | MPEG1/2 MPEG4 (XVID4) MPEG4_Padding DIVX3(Msmpeg4) VC1 WMV H264 AVS H261 MJPEG DVDSpu BDRLE |
| Audio Codec | AC3 MPEG1(Layer 1,2,3) AAC DVDA PCM DTS WMA WMAPRO EXAC ATX WMAPRO DTSLBR Speech DRA FLAC G711 VORBIS(Ogg) |
| Storage | |
| SATA | 1 x SATA support transfer rates up to 1.5Gb/s |
| SD | 1 x SD/MMC |
