原産地: | 中国(本土) | 銘柄: | qlm | モデル番号: | 1215-1200A | 送信電力: | 1200メガワット | 送信周波数: | 0.9-1.3 ghz | 電圧: 12ボルト: | 12ボルト | 有効範囲: | 200-1200メートル |
包装
包装: | カートン |
Technical Parameter
Transmitter | Transmit Power | 1200mW 31dBm |
Transmit Frequency | 0.9-1.3GHz | |
Channels | 15 | |
Voltage Input | DC 12V | |
Transmission Distance | 300-1200M(lineof sight, high gain antennas) | |
Interface | Audio Video input,Power input & output | |
Operation Temperature | -20-60 centigrade | |
Transmitter Size | 86*50*17mm | |
Transmitter Weight | 90g | |
Receiver | Receive Frequency | 0.9-1.5GHz |
Channels | 28 | |
Voltage Input | DC 12V | |
Sensitivity | -85dBm | |
Interface | Audio Video output,Power input | |
Operation Temperature | -20-60 centigrade | |
Receiver Size | 113*58*19mm | |
Receiver Weight | 118g | |
Accessory | 3 dB Antenna | 2 pcs |
High Gain Antenna | Optional (not included) | |
Power Adapter | 2 pcs | |
AV Cable | 2 pcs | |
User Manual | Chinese/English |
Channel and Frequency:
TX | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | A | b | c | d | E | F |
RX | 01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 | 10 | 11 | 12 | 13 | 14 | 15 |
MHz | 993 | 1021 | 1051 | 1060 | 1080 | 1100 | 1120 | 1140 | 1160 | 1180 | 1200 | 1220 | 1240 | 1260 | 1280 |
Fuctions:
This is a amazing products that connect your equipment, like VCR, DVR, Video camera,
AV equipment or satellite system to become wireless!You can have 15 of these receivers running in the one location as there are 15 selecable channels.
With this gadget, you can have your videoand stereo audio transmitted from one place to another even through walls. You can find a whole bunch of uses with it..
Application
1). Home security surveillance
2). Factory, Office, Supermarket, Warehouse surveillance
3). Forest fire monitoring
4). FPV airplane model, electronic toy

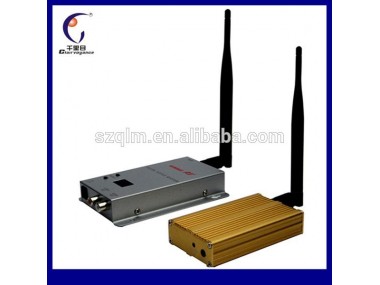

Product Pictures
Notice:
For better reception, please make sure that the transmitter and the receiver are placing at least 5 feet above ground. Distance affected by the nature of environment such as noise, weather, traffic, building, trees ... etc.
Antenna must be attached on the transmitter before power up. Otherwise, the transmitter will be burned out because the excess power cannot be released by the antenna
