| 原産地: | 中国(本土) | 銘柄: | ekl | モデル番号: | eKL-412H | ブランド: | ekl | モデル: | eKL-412H | 色: | 黒 | 原産地: | 深セン、広東省、中国 | 後流通サービス: | 一年保証 | ポート: | 4で2アウト |
包装
| 包装: | 1ピース/ギフトボックス、8ピースhdmiワイヤレスエクステンダー/カートン |
eKL 4 x2 HDMI switch matri x ,
hdmi 4 input 2 output switcher
------------------------------------------------------------------------------
model No.: eKL-412H
---------------Specifications--------------------

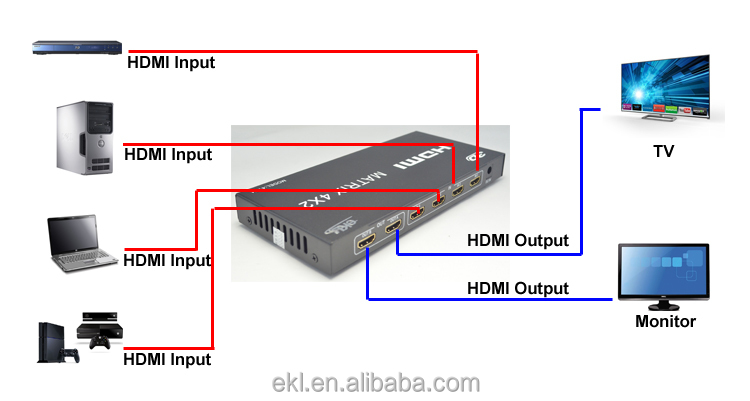

The eKL-412H is HDMI matrix, supports 4 input 2 output, can connect to 4 HDMI sources and switch among them to 2 displays. With remote controller
| **HDMI 4 input 2 output,1080P high-definition true matrix,with remote control |
| **HDMI 1.3a,The highest resolution support 1080P/60Hz,downward compatible perfect |
| **High speed transmission, the fastest data transfer rate 6.75 Gbps,no delay,no sluggish. |
| **Support resolution:24/50/60Hz@480i/480p.720i/720p.1080i/1080P |
| **HDMI Bandwidth frequency:25MHz-225MHz |
| **Support color depth:24/30/36bit |
| **Compliance with HDMI 1.3/DVI 1.0 standard |
| **HDMI interface electrostatic protection:15KV |
| **Support remote control(remote control distance≥10M |
| **Infrared frequency:38KHz:38KHz |
| **4 HDMI input signal, 2 HDMI output signal,easy to mix input signal |
**Input support the longest 20 meters,
Output support the longest 20 meters(use AWG26 HDMI Standard 1.3 Standard cable) |
**Strict control of the raw materials, manufacturing and testing procedure under the ISO9001 standard,
high quality and and Worry-free after-sales. |

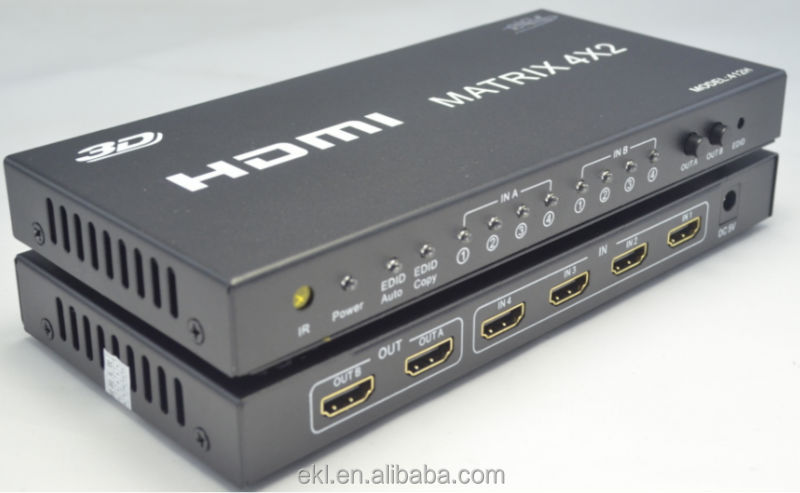

----------------------Photo------------------------
