| 周波数範囲: | Vhf174-230/uhf470-862mhz | 原産地: | 中国(本土) | 銘柄: | ac | モデル番号: | Dvb-t06 | タイプ: | 屋内 | 色: | 黒 | ケーブル: | が付いている3メートルrg174 | 周波数: | Vhf174-230mhz/uhf470-862mhz | ゲイン: | 2.5dbi | 証明書: | iso9001 |
包装
| 包装: | 1pcs/per袋; 25pcs/perボックス |

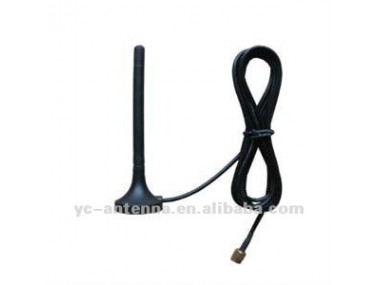

DVB-T Magnetic Omni Directional China Antenna Manufacturer
Applications:
The antenna has high gain, wide frequency band,
Interference resistance, plastic molding method,
high-strength magnet and crimp into one feeder,
antenna size, light weight, stable performance,
reliable, convenient installation.
Features:
Use a frequency :VHF174-230/UHF470-862MHZ
Digital tv signals to enhance mobile
Electrical Specifications: | |
Mode | AC-DVB-T06 |
Frequency Range | VHF174-230MHz/UHF470-862MHz |
Gain | 2.5dBi |
VSWR | ≤2.0 |
Polarization | Vertical |
Impedance | 75ohm |
Maximum Input Power | 50W |
Connector | SMA Male |
Mechanical Specifications: | |
Line long | 3M |
Styles | RG174 |
Antenna Dimension | Φ30×110mm |
Weight | 38g |
Operating Temperature | -40°C to+80°C |
