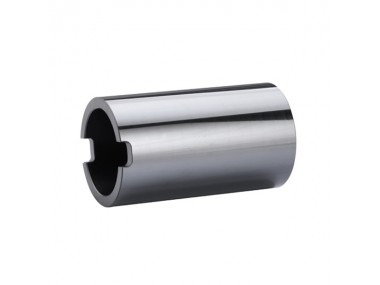

SiC sleeves have the characteristics of high flexing strength at elevated temperatures, high thermal shock resistance. High corrosion resistance and high thermal conductivity, high resistivity against alkalis.
widely used in canned pump, magnetic drive pump, vacuum pump, chemicals, petroleum, metallurgy, mineral processing, and mixing machine.
Characteristic: Low Density, High Strength, Low thermal expansion, High thermal conductivity, High hardness,resistant to strong acid strong alkali salt and gas or deleterious long life high hardness resistant to wear; especially resistant to hydrofluoric acid.
Specification table for product availability
Material | Type | max. size (mm) | |
OD (mm) | Length (mm) | ||
Sintered silicon carbide | Sealing ring | 400 | 100 |
Sleeve | 250 | 200 | |
Tube | 12 | 1000 | |
Reaction bonded silicon carbide | Sealing ring | 500 | 150 |
Sleeve | 320 | 300 | |
Tube | 12 | 1200 | |
Hot- pressing silicon carbide | Sealing ring | 370 | 100 |
Sleeve | 370 | 300 | |
Hot-pressing boron carbide | Sealing ring | 370 | 100 |
Sleeve | 370 | 300 | |
Hot-pressing tungsten carbide | Sealing ring | 370 | 100 |
Sleeve | 370 | 300 | |
Hot-pressing silicon nitride | Sealing ring | 370 | 100 |
Sleeve | 370 | 300 | |
Tungsten carbide | Sealing ring | 450 | 100 |
Sleeve | 450 | 300 | |
CARBON | Sealing ring | 500 | 100 |
Sleeve | 500 | 300 | |
CERA | Sealing ring | 400 | 100 |
Sleeve | 400 | 300 | |
