| プロダクト: | プラスチック型 | プロダクト材料: | 鉄鋼 | 原産地: | 中国(本土) | 銘柄: | 広大な海 | モデル番号: | 管は死ぬ | モードの形成: | 放出型 | ねじ様式: | 単一ねじ押出機 | 最大出力: | 800kg/h | 電気部品: | 有名なブランドを選ぶ | 自動: | はい | 継続の農産物: | はい | 交通機関: | での海または列車 | PLC: | Simens | プラスチック押出機: | 二重ねじか単一ねじ | ねじ設計: | Single-screw | 適用: | 管 |
包装
| 包装: | 内部点検、ブーツテスト、Moistureproof処理の複合材料箱、負荷容器。 |

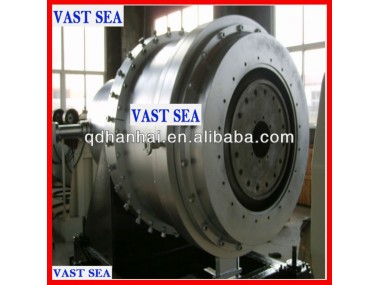

plastic extrusion die
http://www.hanhaisuji.com/en/
http://www.sheetextruderline.com/
contact person:Tracy Guan
Skype:tracyroseguan
Mobile:+8613864850419
We produce die for our customer as per their require.
Product Details:
| Place of Origin | Shandong, China (Mainland) |
|---|---|
| Brand Name | Vastsea |
| Model Number | 30--120 |
| Material | PE |
| Shipment Terms | by Sea |
| HS Code | 8477901000 |
| Finish Machining | Polishing, Alloyed |
| Export Markets | South America, Eastern Europe, Southeast Asia |
Payment & Shipping Terms:
| Price: | Get Latest Price |
|---|---|
| Maximum oder quantity: | Negotiable Trial Order |
| Minimum Order Quantity: | 1 Set/SetsTrial Order |
| Packaging Details: | wooden case |
| Delivery Time: | 40days |
| Payment Terms: | L/C,D/A,D/P,T/T |
| Supply Ability: | 200 sets per month |
Detailed Product Description
Single Screw and Barrel for Extruder
extruder screw and barrel
According to the customer demands to make the goods.
Detailed Product Description:
Single screw and barrel for extruder machine
The barrel can be several parts and connect together to compelet one barrel.
Size:
Screw Diameter: Φ 20-Φ 500mm
Maximun screw length: 10000mm
Barrel inner bore diameter: Φ 500mm
TECHNICAL DATA
Depth of nitration case: 0.4-0.7mm
Hardness of nitration: HV900-1060 (HRc56° -65° )
Roughness of the surface: Ra 0.4μ M
Screw straightness: 0.015mm/m
Chrome plating thickness: 0.01-0.1mm
Suitable plastic material: PP, PE, ABS, AS, PS etc.
