| 原産地: | 中国(本土) | 銘柄: | zanbo | モデル番号: | Zk2dc+zy27- 2e | 実用温度: | -40~80 | 最高。 電圧: | dc12v | 最高。 現在: | 12ミリアンペア | 動作周波数: | 315mhzの、 433.92mhzの | 動作電圧: | dc12v | 送信距離: | 80m、( 100- 200m/1km/3キロ可能) | エンコードタイプ: | 固定コード、 学習コード | 出力電流: | <=10a | 動作温度: | °c- 20+80°c〜 | 受信感度: | -105dbm | 変調: | am | サイズ( l*w*h): | 45*30*15mm | 信号出力方式: | M4/l4/t4 |
包装
| 包装: | 中立パッケージまたは顧客の要求に応じて |
仕様
Item No.: ZK2DC+ZY27-2E ,Hottest sell,Mini Fixed/learning code AC12V,2channels, <100M remote distanc,RF Wireless Remote transmitter receiver kit. Toggle,Latch,momentary working mode available.With 100-200m,1km,3km wireless remote control to meet your need.
Features/ Application:
High confidentiality, large storage , stable performance, Commonly
used to remote control products like LEDs,electronic doodrs,garage doors,electronic windows,and any kinds of wireless devices in family, office, hotel, hospital, shopping malls, warehouse etc.
Our Superiority:
1.Professional Manufacturer
2.Provide R&D, Manufacturing and Sales
3.OEM & ODM are available
4.High Quality(components are all imported)
5.Competitive Price
6.Sincere Service
7.One week delivery period
8.Lifetime warranty
Receiver(ZK2DC) Technical Details:
| Operating voltage | AC12V |
| Operating frequency | 315,433.92 MHz |
| Output current | <=6mA |
| Operating temperature | -20 °C ~ +80 °C |
| Receiving sensitivity | ≥-105dBm |
| Modulation | AM |
| Signal output method | M4:Momentary-signal non-locking , L4:Latch-signal interlocking,T4:Toggle-signal self-locking |
| Encoding chip | program chip , It can use with transmitter which is fixed code(PT2262/PT2264/SC2262) and learning code (eV1527) |
| Size | 45*30*15mm |
Transmitter ( ZY27-2E )Technical Details:
| Operating voltage | DC12V(one unit 27A/12V battery) |
| Operating current | < 10mA |
| Transmitting power | > 10mw |
| Modulation mode | ASK (AM) |
| Operating frequency | 315MHZ,433.92 MHZ (available for customer appointment) |
| Transmitting distance | 80m (open space) |
| Encoding type | fixed code ,learning code, rolling code |
| Size | 57 * 45 * 30mm |
Brief Introduction:
This wireless receiving controller, high confidentiality, Large memory, stable performance, low power consumption, convenient using , without using traditional jumpers or switches coding, just make the receiving controller receive and save the signals from wireless remote control, then they can be realized to use together . If the learned control is lost in using process, just clear the information stored in the controller, the loss of remote control cannot control the receiving controller , must learn once again before using. There are four state of output : (non-locking, interlocking, self-locking), choosing different working conditions, decided by learning different remote keys.

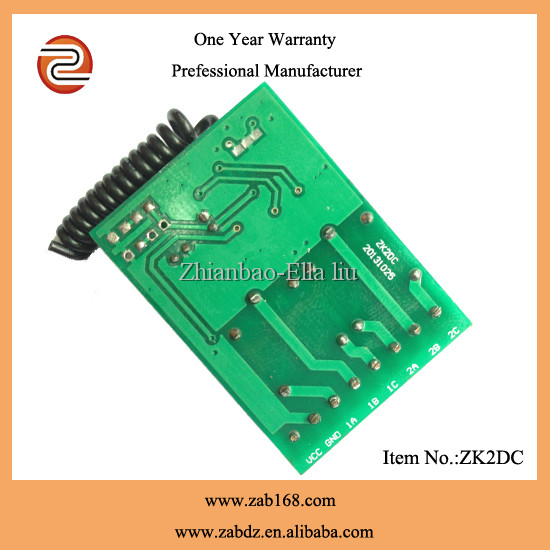

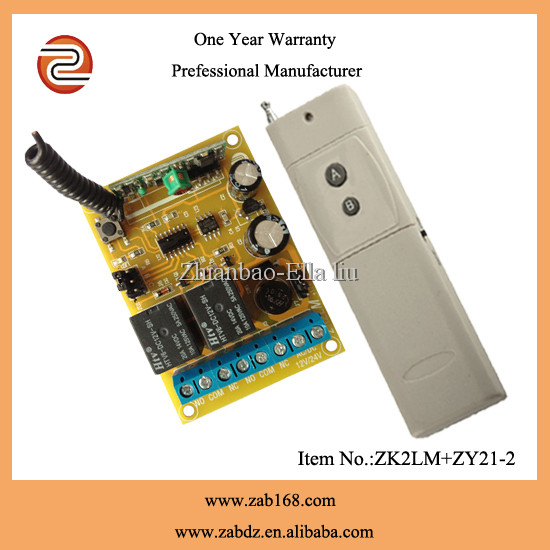

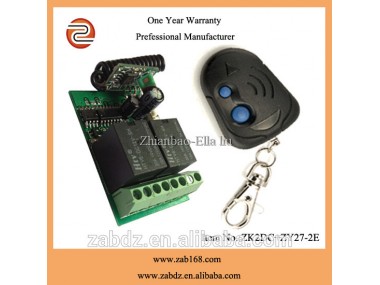

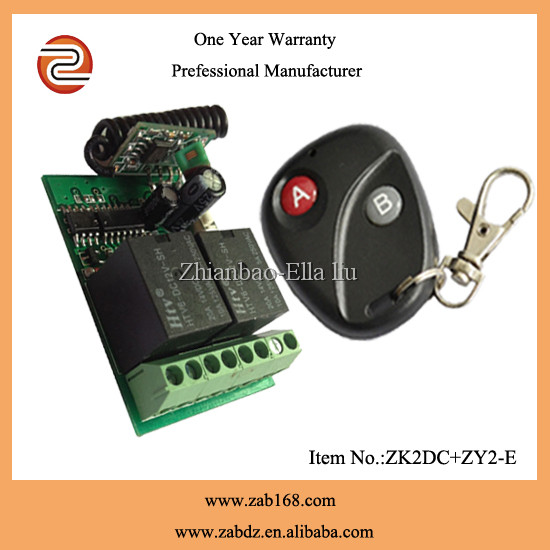

Detailed pictures:
