| 原産地: | 中国(本土) | モデル番号: | Rfm-300b | タイプ: | 母方の新生児の超音波モニター | ディスプレイ: | 7インチカラーディスプレイ | オプション: | ツインプローブ | 保証: | 18ヶ月 | 証明書: | ceiso |
包装
| 包装: | 泡の中でカートン |
仕様

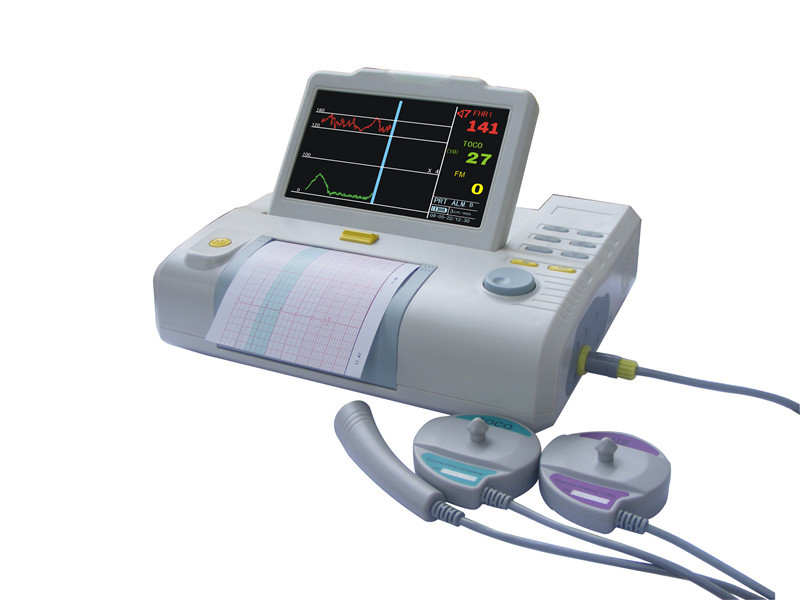

Features:
7" TFT Color display
Light weight, space-saving, easy to use
Display waveforms and digital simultaneously
FHR 120-160 bpm normal range label
Sound and alarm for high and low fetal heart rate
24-hour real-time monitoring function
12 hours data and waveform storge review and print
With picture freeze function
Single, Twins Monitoring optional
High sensitive 9 Elements 1 MHz pulse Doppler transducer
Built-in thermal recorder
Built-in wireless netnork, can be connected with central monitor system.
Parameters:
Dimension of Recording
Paper: 110mmx20mm
Printing Speed: 1, 2, 3 cm/min.
Record Message: FHR trend graph, TOCO trend graph, time, paper, speed, etc.
Power Supply: AC: 100~240V, 50/60Hz
DC: 7.4V, 3700mAb
FHR
Technique: Ultrasound pulse doppler and auto correlation
Utrosound Frequency: 1 MHz
FHR Measuring Range: 0~100%
Resolution:1 bpm
Accuracy: ± 2 bpm
TOCO
TOCO Measuring Range: 0~100%
Resolution: 1%
Non-linear Error: ≤±10%
Zero Control: Manual
Fetal Movement
Manual Fetal movement mark
Dimension: 315(L)x215(W)x92(H)mm
Net Weight: 2.5 kg
