| 原産地: | 中国(本土) | 銘柄: | Double Eagle | モデル番号: | KA02 | タイプ: | 外科供給 | 特性: | 医学材料及び付属品 |
包装
| 包装: | 4セット/ctn/87*42*30cm |
仕様

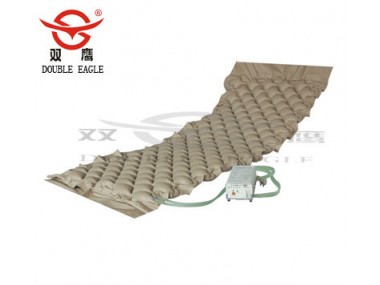

Bed-type anti-decubitus air cushion
1,Composition:Bed-type air cushion and air pump
2,Material: PVC(EN-71,non-toxic)
3,Dimension:2000*950mm
4,Dimension of the Strip bag:12cm/14cm/16cm
5,Usage:the fluctuant ballonet can expedite blood circulating to avoid the appearance of the bedsores on the patients who stay in bed for long. So that to cure the bedsore quickly.
Mainframe Control :
1. When the power supply is connected, press and switch on, the mainframe begins to puff and add pressure to the air cushion.
2. Strong-weak switch: turn clockwise means strong and turn counter-clockwise means weak.
3. Puff vessel: the pump of the mainframe can puff and deflate the two ballonets by turns through the two vessels.
Ways of Operation
1. Switch on the power and turn on the power, then the mainframe begins to work.
2. When you use it for the first time, please switch the puff intensity clockwise to the position of “strong”.
3. At night or when the patient feels the air pressure changes strongly, please switch the puff intensity under-clockwise to the position of “weak”.
Storage
Store the air cushion in a breezy room in which the relative temperature is not more than 80%, and without direct sunlight or corrosive gas.
| Work mode: | Continous wave | Air output: | ≥4.5L/min |
| Voltage: | AC220V/110V 50/60Hz | Cycle time: | 5-6 minutes |
| Power: | ≤10w | Dimension/height after air inflation: | 1950*900mm/7cm |
| Pressure range: | ≥ 16Kpa |
Products Show
