| 原産地: | 中国(本土) | 銘柄: | shenfeng | モデル番号: | Y805-2,y805-1; t102-1,t102-2,c106-1,b107-2 | タイプ: | 外科供給 | 特性: | 医学材料及び付属品 | 証明書:: | ce、 iso13485 | 目的: | 大人、 子供、 新生児 |
包装
| 包装: | 2pcs/アルミ箔の袋、 50pcs/box、 200pcs/ctn |
仕様

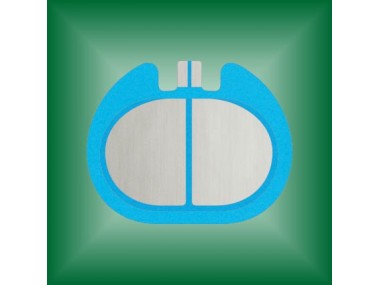

Electrosurgical Grounding Pad/Patient Plate/Disperse Electrode/Return Electrode
Foam backing,match with electrosurgical unit, for conmed/valleylab generator.
1.Models:
Adult
Y805-1 Monopolar Y805-2 Bipolar Size: 154x192mm Conductive adhesive Area: 165x106mm
T102-1 Monopolar T102-2 Bipolar Size: 221x116mm Conductive adhesive Area: 17090mm
Children/Paediatric
C106-1 Monopolar Size: 155x100mm Conductive adhesive Area: 109x80mm
Neonatal
B107-2 Bipolar Size: 115x84mm Conductive adhesive Area: 7074mm
2.Features:
Iso 10993 biocompatible test;Non-cytotoxic,without stimulus and sensitivity;
Good adhesive and conductive properties;
It can avoid the burned hurt which would be caused by the connection of metal foil and skin to reduce the pad size and fit for any direction operating.
3.Technical Parameters:
Surface temperature rise<6
Frequency Impedance<50 Ω (200KHz-5000KHz)
Consecutively Adhesivity >10min (1000g Counter Poise)
Fluid tolerance test >10 Min (1000g counter Poise)
No colon bacillus and No pathopoiesia pyogenic bacteria
Total number of colony: Epiphyte <100cfu/g Bacteria <200cfu/g
4.Packaging:
2pcs/Aluminum foil pouch, 50pcs/box,200pcs/ctn Ctn size: 57cmx35cmx22cm G.W/N.W: 9.0/8.5kg.
