| 原産地: | 中国(本土) | 銘柄: | shangyi | モデル番号: | HFP-SD160/260 For Anesthesia | タイプ: | 手術台 | 動力源: | 電気 | product name: | single arm pendant | Arm: | Single | Arm Length: | 1000mm | Column Length: | 1200mm | Arm Rotating Angle: | 340° | Maxium load capacity: | 260Kgs | Electrical Power: | 220V, 50Hz | Braking System: | Friction brake | Medical Gas Outlets for Oxygen: | 1 | Medical Gas Outlets for Vacuum: | 1 |
包装
| 包装: | 木製ケース |
仕様

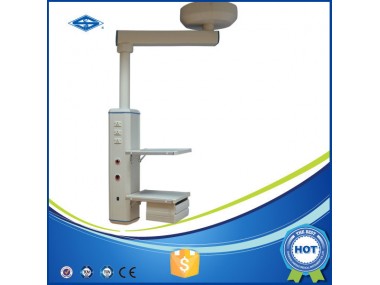

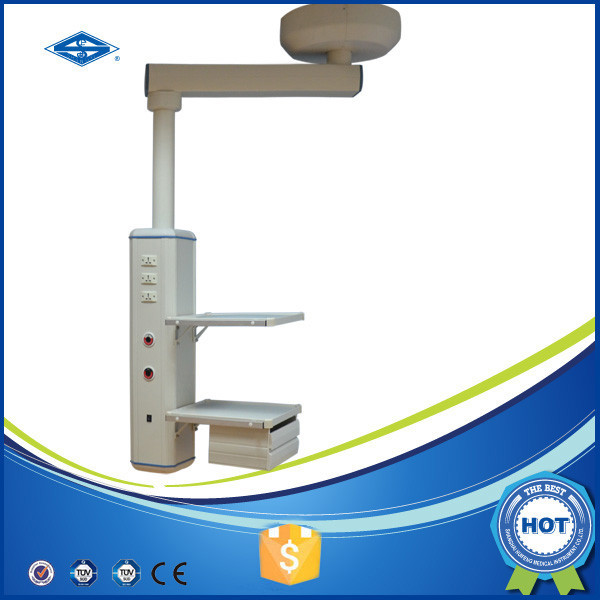

Electric anesthesia medical single arm pendant
Item Description
1. Ceiling Mounted installed.
2. Friction brake + Pneumatic brake.
3. Provide multiple configure,make you satisfy.
4. Electrical up and down,precise positioning.
5. Surface designed by the first level oxidized rust prevention.
6. The suspension arm is imported by high-strength aluminum alloy extrusion.
7. Pendant Applicative Area: Surgical Room/ Emergency Room/ICU/Recovery Room
8. Adopted by German Standard Gas terminal (Insert and Pull more than 20,000 times).
9. Within 340°revolved,Adjustterminal box location,convience for medical staff operation.
What is the Specifications of our HFP-SD160/260 For Anesthesia ?
| Type | HFP-SD160/260 For Anesthesia, single arm pendant |
| Arm | Single |
| Arm Length | 1000mm |
| Column Length | 1200mm |
| Arm Rotating Angle | 340° |
| Maxium load capacity | 260Kgs |
| Electrical Power | ~220V, 50Hz |
| Braking System | Friction brake |
| Standard Configuration | |
| Medical Gas Outlets for Oxygen | 1 |
| Medical Gas Outlets for Vacuum | 1 |
| Medical Gas Outlets for Medical(Compressed) Air | 1 |
| Medical Gas Outlets for AGSS | 1 |
| Medical Gas Outlets for Carbon Oxide | 1 |
| Electrical Sockets(Australia Clipsal/Schneider) | |
| China type 3 pin 10A sockets | 6 |
| Communication socket RJ45 | 1 |
| Standard accessories | |
| Accessories | Quantity |
| Equipment Shelves | 2 |
| Drawer | 1 |
| IVpole or infusion pump rack | 1 |
| Stainless steel basket | 1 |
| Optional | |
| Double Arm | |
| Medical Equipment Shelves Quantity | 1~5 pcs optional, place adjustable |
| Medical Gas Outlets Standards: | British, German, French, Metric, Ohmeda, DISS, Chemetron, Purit-Bennett standards optional |
| Electrical Sockets | can be customization as clients' request |
| Warranty | 1 year |
| Delivery time | 7 days |
What is the Trade Items of our HFP-SD160/260 For Anesthesia ?
| Trade Items of single arm pendant | |
| MOQ: | 1 piece |
| Packaging: | carton or wooden case |
| Payment: | L/C T/T Western unio |
| Port: | Shanghai |
| Delivery time: | 3-5 days after receiving payment |
| Production Capacity: | 500pcs/Month |
Shanghai Huifeng Medical Instrument Co., LTD mainly produces high-end operating light, operating table,pedent, Oxygen bag, Air cushion, Pneumatic tourniquet, electric boiling sterilizer and so on. We have our own factory and all the products have passed CE, FDA, ISO certification. Professional customing the products by client's demands, accepting OEM and ODM order. Welcome your RFQ any time.
