| 原産地: | 中国(本土) | 銘柄: | 湯田 | モデル番号: | yd580 | タイプ: | 医学のガス装置 | 備考: | c | 材料: | 金属 | タイプ: | ガス移送 |
包装
| 包装: | パッケージ標準的な木 |
仕様
Double-armed Anesthesia pendant ,Medical ceiling-mounted pendant ,supply you high quality and best price
Main feature and function:
1. Main marterial used the high-strength aluminum alloy, the whole sealed design; modular design, surface electrostatic powder painting, prevent corrosive, easy to clean
2. Fully flexible, can be easily and safety repositioned to suit different procedures and cases allowing quicker turn around times.
3. Multiple medical gas, electrical and data sockets at a safe height will support all medical equipment such as monitors, diathermy, and power tools .light source, camera and video etc.safety off the floor.
4. Ceiling mounted system keeps floor clear and easy to clean .integral cable management.
Technical parameter and standard configuration
Item | Parameter |
Rotary arm length | 750-1200mm (customer can customize arm length) |
Rotary radius | ≥750mm |
Net loading capacity | ≥250kg |
Equipment shelves loading capacity | ≥60kg |
Equipment shelves | 2pcs |
Medical gas outlets configuration | O2*1 ,Air*1,Vac*1.N2O*1,AGSS*1 |
Power socket | 8pcs(220V 10A) |
Net work socket | RJ45 1pcs |
Extension arm | 1pcs |
Stainless steel wire basket | 1pcs |
Drawer | 1pcs |
Level degrees rotation | ≤340 º |
Terminal box | ≤340 º |
Box length | ≥700mm |
Lift height | 400mm-600mm |
Note All the configuration and accessories can adjust according to customer’s requirment

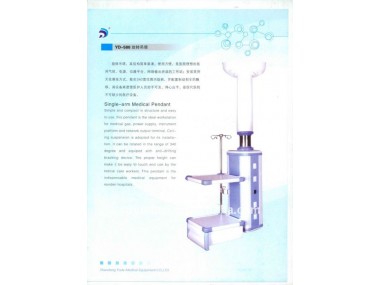

Medical Pendant
