| 原産地: | 中国(本土) | 銘柄: | ライオン | モデル番号: | ライオン- 810t | タイプ: | 麻酔の装置及び付属品 | ブランド名: | ライオン | モデル番号: | ライオン- 810t | 色: | 白 |
包装
| 包装: | 標準的な輸出パッキング英語版( カートンのパッキング) |
仕様

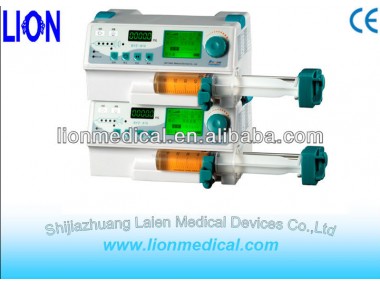

Dual-channel Portable stackable syringe pump with drug library and CE certificate:
Features & Functions:
1.Three working modes: rate mode, time-volume mode, dosage-weight mode.
2.Unique Human Voice Alarm system and accurate injection rate make the injection process safer and more reliable.
3.Have store many brands syringes,Automatically calibration and compatible with any brand syringes.
4.Large LCD screen displays working status.
5.KVO and Bolus functions.
6.Two channels can work independently or together.
Technical parameters:
Product name | lion-810T Double Channel syringe pump |
Flow rate | 50ml syringe:0.1~1500ml/h; 30ml syringe:0.1~900.0ml/h; 20ml syringe:0.1~600.0ml/h; 10ml syringe:0.1~300.0ml/h |
The range of limiting volume | 0~999.9ml |
The range of injected volume | 0~9999.9ml |
Accuracy of flow rate | Within ±3%(Choose the syringe of specified manufacturer correctly. This accuracy of flow rate is not including the errors of syringe itself.) |
Purge rate | Purge rate of 50ml syringe:1500ml/h; Purge rate of 30ml syringe:900.0ml/h; Purge rate of 20ml syringe:600.0ml/h; Purge rate of 10ml syringe:300.0ml/h |
Alarm and warms | The pump can give out alarming when injection soon finish, injection finishing, injection of limited amount finished, injection is blocked, syringe falls off, syringe is improperly installed, setting error, AC power has been pulled out, low battery and so on. |
Injection blocked | Choose in the three kinds of occlusion alarm pressure according to the clinical requirements(High,Medium,Low) |
KVO rate | 1ml/h |
Fuse specification | F1AL/250V ,two fuses(installed inside pump) |
Operating power | AC100~240.0V, 50/60Hz, Power:≤30VA Internal rechargeable battery: DC 11.1V,capacity≥1600mAh. The device could work constantly more than 4 hour at medium speed running mode, after the battery charged for 10 hours. |
Operating environment | temperature:+5~+40°C, relative humidity:20~90% |
Storing environment | temperature:-30°C~+55, relative humidity:≤95%, ( No condensation state ) |
Atmospheric pressure | 860hPa~1060hPa |
Safety level | Class II with insulated enclosure, internal power supply, BF-type continuous normal running equipment. |
IP grade | IPX1 |
Dimensions | 280(L)×210(W)×255(H)(mm) |
Weight | 3.6kg |
Accessories | Power line, operating manual, warranty card, product certification. |
company Introduction:
Laien Shijiazhuang medical instrument limited company was founded in 2008, mainly with operaing medical equipement and medical suppies, health suppies. Companies registered capital of 3000000 yuan, employees 20 people. in 2012 july approved to engage in import and export business.
The Company mainly engaged in medical electronic equipment, optical instruments and endoscopic equipment, ultrasound equipement and related equipment. In gynecology, emergency room, Department of orthopedics, operation room, clinic, rehabilitation physiotherapy room, paediatrics, department of ENT, ICU room equipment and supplies. Recently the company main products are: depth of anesthesia multi-parameter monitor, anesthesia operation process the necessary equipment.
