上げられたアクセス床のシステムの大きさ: 600*600*35MMか500*500*28mm

Specifications

The panel is made of good quality cold-rolled steel sheets,
Inside of it is filled with foamed cement.

China Bare Type Stainless Steel raised floor
Features:
1) Dimensions: 600 x 600 mm
2) Die-cut edging
3) Structure:All-st

China Bare Type Stainless Steel raised floor

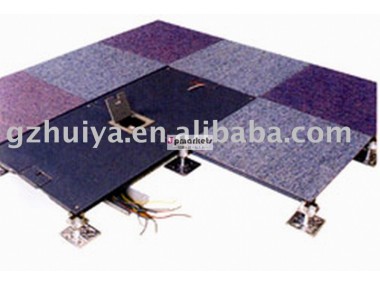

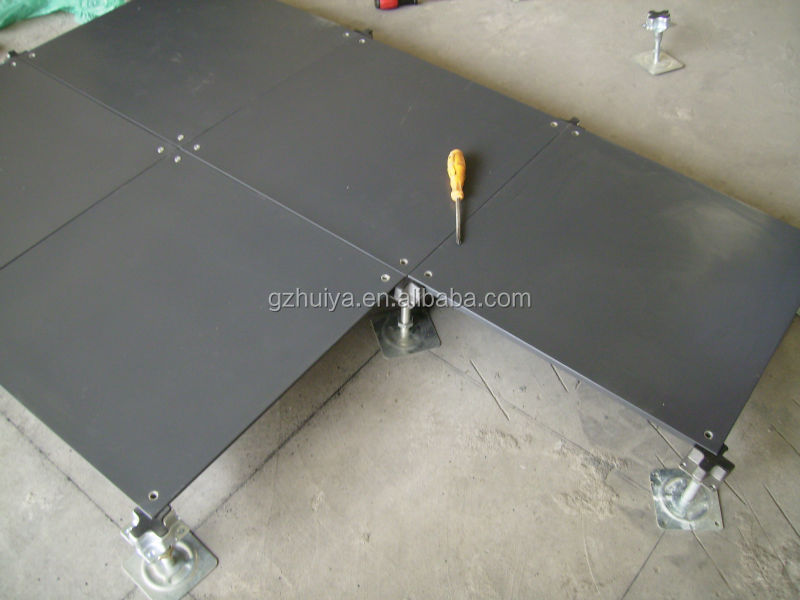

composed of panels, pedestals, an anti-vibration gasket and screws. The panel is place on top of the pedestals with an anti-vibration gasket, and then locked in place with the screws in the corner-lock holes.

Features:
1) Panel size: 600600mm or 24”x24”

    PedestalCoating:GalvanizedoranElectrophoreticcoating

2) Die-cut edging
3) Structure:
a) All-steel structure
b) Zinc and aluminum structure
4) Pure cement filling inside
5) Bare surface coated with static epoxy powder
6) Material: cold-rolled steel sheet
7) Composition: panel, pedestal, anti-vibration cushion, screws
8) Height: adjustable and fixable
9) High compression resistance capacity and anti-impact performance

We have supplied and installed access flooring for a variety uses such as computer rooms, meeting rooms, data processing centres and offices.
HUIYA Access Floors is ISO 9001 & ISO14001 accredited for both its manufacturing and installation operations. All designed and manufactured to the latest industry standards and backed up by our industry-leading in-house product testing and technical support facilities.

We could produce: antistatic steel cementitious raised flooring(HPL raised flooring,PVC/Vinyl Raised flooring,Ceramic raised flooring),woodcore access floor,OA bare panel,perforated panel/air flow floor,calcium sulphate core raised flooring,Aluminum Solid Panel,pedestal,stringer

HPL Color selecion

raised floor:
The panel is made of good quality cold-rolled steel sheets,
Inside of it is filled with foamed cement.

HUIYA FLOOR is an export-oriented access floor manufacturer, integrating the design, manufacture, sale and distribution. We have obtained ISO9001, ISO4001 Environment Management System and Korea KS Certifications.

The panel is made of good quality cold-rolled steel sheets,which are punched,spot-welded,coated with epoxy powder after has been phosphoreted.Inside of the panel is filled with foamed cement.The top steel sheet of the panel is stuck with high anti-wear and fireproof HPL or conductive PVC tile.The borders of the panel are trimmed with conductive PVC edges.

Feature:

1)Constituted by all-steel sheet,high mechanical strength and

  loading capacity,excellent fire-proof;

2)Surface was coated with static epoxy powder,light gloss,

  anti-wear and anticorrosion;

3)Stuck by decorated high-pressure laminated panel,  superior in anti-wear and anti-static,easy to clean ,and excellent decorative appearance.

4)High dimension accuracy, excellent.

  interchangeability, easy to install.

  and disassembly,convenient to maintenance.

Application:

The anti-static steel access panel is mainly used for large computer room, communication center, electrical control room,post and telecommunication center

1. Type: FS700, FS800, FS1000, FS1250, FS1500
2. Size:
600mm*600mm*30mm, 600mm*600mm*35mm
610mm*610mm*30mm, 610mm*610mm*35

Characteristics
1. Type: FS700, FS800, FS1000, FS1250, FS1500
2. Size:
600mm*600mm*30mm, 600mm*600mm*35mm
610mm*610mm*30mm, 610mm*610mm*35mm
3. Concentrated load: 300kg, 363kg, 453kg; 567kg, 680kg
4. With a large loading capacity and strong impact endurance.
5. Suitable for being widely used due to its flexible Adjustment of height varying from about 80mm to 1000mm.
6. Comfortable and steady, characterized by its capability of Absorbing sound, insulating heat and fireproofing.
7. Made with anti-static materials of high quality, which Contributes to the good quality of the floor.
8. The antistatic decoration covers made of HPL or PVC Material can be used for selection.

Application Suitably used in large-or-medium sized computer rooms, such As rooms equipped with communication facilities of Switchboard, rooms for control center or information Administration center and so on.

Note:
1. The anti-static decoration covers made of HPL or PVC material can be used for selection.
2. The laying height of raised floor can be freely selected within the range of 80-1000mm.
