Item

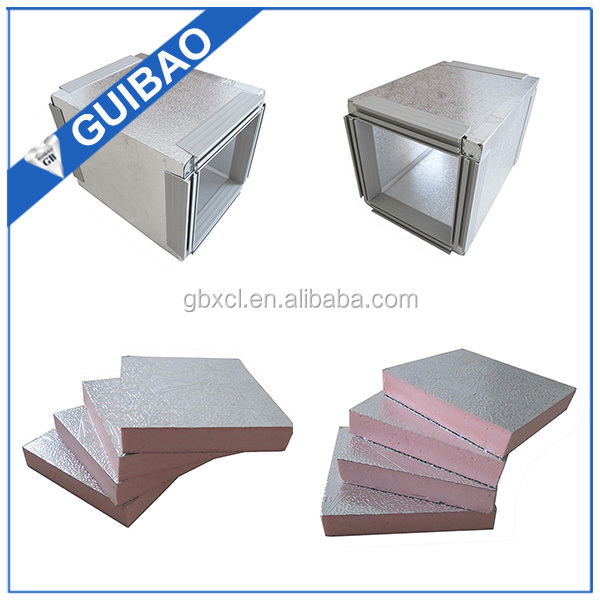

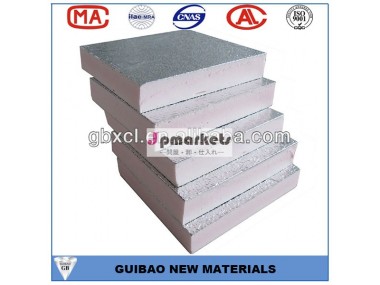

labor saving phenolic sandwich board

Material

core material:modified phenolic foam

metal surface:aluminum foil

Specification

1.     Thickness: 20mm – 50mm

2.     Width:600mm–1200mm

3.     Length:1000mm–6000mm

4.     Compressive Strength: 150kPa - 1000kPa

5.     Flame Retardant:A

Technical Data

Density

60-75kg/m³

Thermal conductivity

0.023-0.038W(m.k)

Compression strength

0.2-0.45Mpa

Bending strength

1.2-1.78Mpa

Dimensional Stability

≤1.5%

Water absorption

≤3%(v/v)

[SDR]Smokedensity rating

≤1

Working temperature

-150°C-150°C

Flame rating

GB8624-1997:Grade A

GB8624-2006:Grade B-s1,d0,t1

Formaldehyde emission

≤1.5ml/L

Maximum allowable wind speed

15M/S

Working pressure

≤1500Pa

Leakage volume,pressure and deformation

Qualified

Fire resistance

>1.6h

Acid and alkali resistance

Soak at roomtemperature,no change

Anti-fungal

No plate

10 advantage of GUIBAO products

1. The brand GUIBAO is trustworthy
2. Professional research and development team focus on developing new products
3. Fireproofing level A,safe and reliable
4. Less smoke,non-toxic,energy saving and environment protection
5. Large temperature resistance scale,good stability
6. Low coefficient heat conductivity,strong thermal insulation property
7. Widely applied,effectively matched
8. Strong sound absorption
9. Simple and easy for construction,saving the construction time
10. Quality after-sale services make consumers free of worry

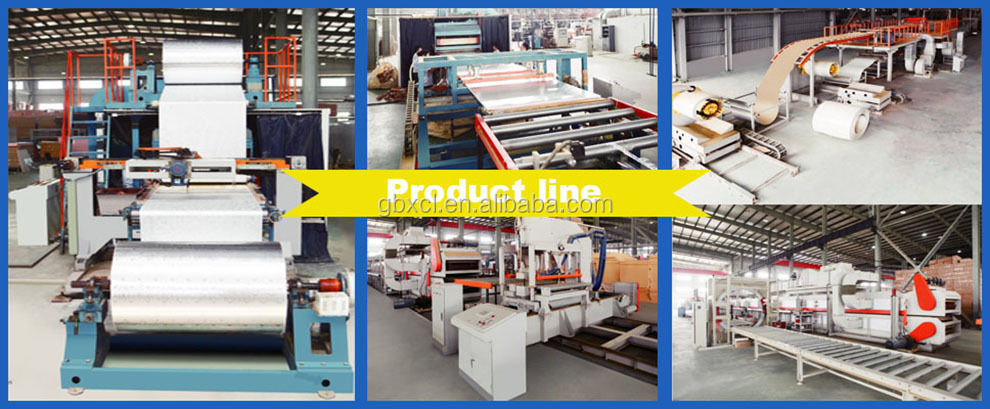

Workshop and production line

Order Guide:

1.Inquiry-Professional quotation.

2.Confirm the price, lead time, artwork, payment term etc.

3.Our sales send the PI to you.

4.Customers make the payment for deposit and send us Bank receipt.

5.Initial Production Stage-Inform the clients that we have got the payment,And will make the samples according to your request, send you photos or Samples to get your approval. After approval, we inform that we will arrange the production & inform the estimated time.

6.Middle Production-send photos to show the production line which you can see your

products in . Confirm the estimated delivery time again.

7.End Production-Mass production products photos and samples will send to you for

approval. You can also arrange the third party Inspection .

8.Clients make payment for balance and we Ship the goods .again Inform the tracking number and check the status for clients.

9.Order can be say “finish” when you receive the goods and satisfy with them .

10.Feedback to us about Quality , Service, Market Feedback & Suggestion. We will do better .

Ordering instruction

Building function: We will recommend the proper panel type and the bes technical solution for you according to it

Fire resistance requirement of the project

Plate specification: Length*Wide*Thickness, peak height

Types of core material for your choice: Phenolic ,PU,XPS

Density: by your requirment

Steel sheet material:prepainted steel plate, aluminum plate and kraft paper for your choice

Panel color: For special colors, sample panels and negotiation are neessary.

Coating type: Polyester type, silicone modified polyester type, highly weather-resistant type and fluorocarbon type

Surface shape: Ripple effect, plat effect, relief effect and square wave effect.

base panel thickness:0.4-0.8mm

base panel treatment: hot dip galvanized, Al-Zn coated
