製品情報
| 原産地: | 中国(本土) | 銘柄: | kason | モデル番号: | Jb-b | 力: | 電子 | 使用法: | 影響の試験機 |
包装

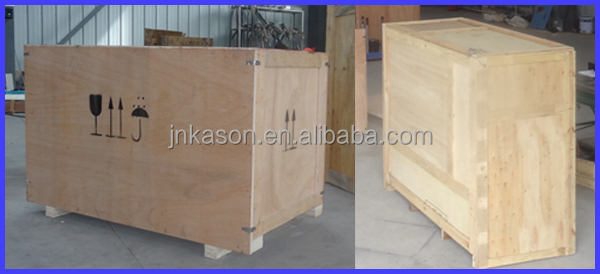

| 包装: | 標準的な輸出plywoobボックス |
仕様
シャルピー衝撃試験機1.振り子調達、 インパクト、 電気で制御された振り子ダウン2.ネットを保護すると共に、

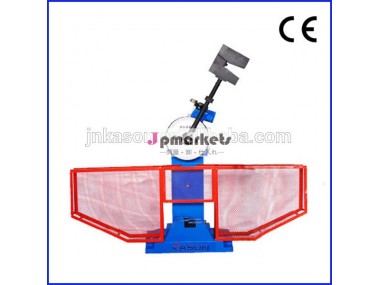

JB-B Semi Automatic Charpy Pendulum Impact Tester/metal Impact Tester
1. Application
JB type impact testing machine is used for measuring the metal material resistance performance under dynamic load, in order to determine the material properties under dynamic load.
Pendulum raising, impacting, pendulum down controlled by electric.
2. Standards:
ISO148, EN10045, ASTM E23, GB/T3808-2002 ,GB/T229-2007
3. Main Technical Specifications:
Model | JB-300B | JB-500B | JB-800B | ||
impact energy | 150/300J | 250/500J | 500/800J | ||
The distance between the pendulum shaft and impact point | 750mm | 800mm | 800mm | ||
Impact speed | 5.2m/s | 5.4 m/s | 5.9m/s | ||
Pre-rising angle of the pendulum | 150° | ||||
Specimen bearer span | 40+0.2mm | ||||
Round angle of the jaw | R1-1.5mm | ||||
Round angle of impact edge | R2-2.5mm,R8±0.05mm | ||||
Angle accuracy | 0.1° | ||||
Standard specimen dimension | 10mm×10(7.5/5)mm×55mm | ||||
Power supply | 3phs, 380V, 50Hz Or 220V,60Hz | ||||
Dimensions (mm) | 2124 x 600 x 1340 | 2200 ×650 ×1960 | 2450 x 1200 x 2455
| ||
Net Weight (kg) | 450 | 650 | 2300 | ||
4. Features:
4.1 The principle machine of the testing machine has single supporting column structure, cantilever type pendulum hanging mode; the pendulum body is U-shaped
4.2 The impact cutter is installed and fixed by screws and is convenient and easy to be replaced;
4.3 Safety guard pin is arranged on the principle machine which is also provided with safety guard net
Impact Tester Pics:

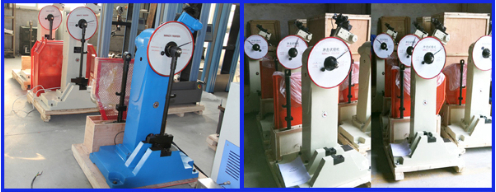

Factory Show:
