製品情報
| 原産地: | 中国(本土) | 銘柄: | huakong | モデル番号: | Hk-hct2-013 | 電源: | 12v- 45vdc | 減衰: | 0- 32s調節可能な | 動作温度: | -40â- +85â | 動作温度( lcd): | -20â- +70â | オプションの出力: | +5v、 0.7ma | 基本確度: | ±0.1%f。 s |
包装
| 包装: | カートンと専用パッケージ |
仕様
1)アイソレーション( 500vac) 入力と出力の間に2)出力信号: 出力に加え4~20mahartプロトコル

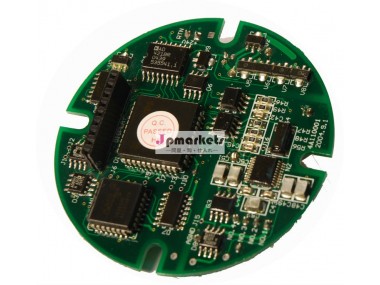

HK-HCT2-013 HART Temperature Transmitter Board
Brief Introduction:
HK-HCT2-013 HART Temperature Transmitter Board is in conformity with HART protocol. It could be easily connected with 5 resistance: CU50, CU100, PT50, PT100, PT1000 or 8 thermocouple: B, E, J, K, N, R, S, T, to build HART compatible temperature transmitter. HK-HCT2-013 could also be applied as tester for resistance (0~4000 ohm) or millivolt (-80mV~80mV).
Technical Specifications:
Power Supply: 12~45V DC
Damping: 0~32s, adjustable
Dimension: Φ68mm (four holes, hole distance: 58mm)
Operation Temperature: -20°C ~ +70°C (with LCD)
-40°C ~ +85°C (without LCD)
Basic Accuracy: 0.1%
Output Signal: 4~20mA
LCD Display (optional): 4 ½ digits
Main Features:
4~20mA output signal with HART digital communication (2-wire)
High stability with signal isolation
Intrinsically safe design
When applying thermocouple, cold end temperature compensation available
Complete self-inspection, thus convenient maintenance and inspection
High EMI-RFI immunity
Remote management and configuration available via PC
Field configuration available via hand held communicator or key-press
