製品情報
| 原産地: | 中国(本土) | 銘柄: | lixian | モデル番号: | Hz-3512a | サイズ: | 470*370*180mm | 重量: | 14kg | 焦点距離: | 1.8nm帯域幅 | 波長範囲: | 190-1100nm | 測定の範囲: | 190-1100nm | 名: | ダブルビーム分光光度計 | 認証: | Rohs/ce/ul/astm/bv | 光学系: | シングルビーム、 格子1200ライン/mm | 波長範囲: | Nm190-1100 | 波長精度: | ±0.5nm | 波長再現性: | 0.3nm | 光源: | タングステン | スペクトル帯域幅: | 2nm | ビデオテスター: | 高精度 |
包装
| 包装: | シングルビームのuv分光光度計によってパッケージだった標準的な輸出木製ケース。 |
仕様
1.シングルビームのuv分光光度計2.lcdスクリーン表示スペクトル3.シンプルで簡単なインターフェイスを使用し4.ソケットタイプ5.今取引

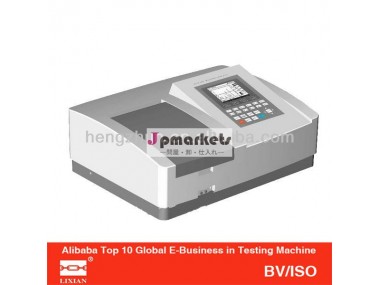

Automatic Single Beam UV Spectrophotometer Supplier
Features of Single Beam UV Spectrophotometer:
1.Large LCD screen(128x64Dots).Can display total 200 groups of data,5 groups per screen. Can display standard curve and the curve equation.
2.Can save 200 groups of curve equation. Convenient for check and reload.
3.Data can be restored after a sudden power cut.
4.Auto setting wavelength. Auto zero and blank.
5.Tungsten lamp & deuterium lamp can be turned on/off individually to extend lifetime.
6.The Toption application software UV-Professional provides complete control of the spectrophotometer from a computer through the Built-in USB port. The following functions can be easily achieved: Quantitative, Kinetics, Wavelength Scan, DNA/Protein Test and Multi-wavelength Test.
7.The flange of the D2 lamp makes it become true Pre-aligned design makes it convenient to change lamps.
8.Large sample compartment, It can accommodate 5-100mm path length cuvettes with optional holders. A variety of optional accessories are under your choice.
Specifications of Single Beam UV Spectrophotometer:
| Model | UV-1800(PC) | |||||
| Wavelength coverage | 190~1100nm | |||||
| Spectral bandwidth | 2nm | |||||
| Optical System | 1200wires/mm,Single Beam,high-performance holographic grating | |||||
| Wavelength Accuracy | ±0.5nm | |||||
| Wavelength Repeatability | ≤0.3nm | |||||
| Photometric Accuracy | ±0.002A(0~0.5A) ±0.004A(0.5~1A) ±0.3%T(0~100%T) | |||||
| Luminosity Repeatability | ≤0.001A(0~0.5A) ≤ 0.002A(0.5~1A) ≤0.15%T(0~100%T) | |||||
| Stray Light | ≤0.05%T (360nm) | |||||
| Wavelength setting and zero setting | Automatically | |||||
| Luminosity Range | -0.3-3A, 0-200%T, 0-9999C | |||||
| baseline wander | ±0.001A/h(500nm after preheating) | |||||
| baseline glancing flatness | ±0.002A | |||||
| Noise Level | 0.0005Abs(500nm) | |||||
| Working Manner | A, T, C, E | |||||
| Light Source | imported long-lifed Tungsten lamp | |||||
| Detector | imported Silicone LED | |||||
| Display Modes | Large LCD screen(128*64 Dots) | |||||
| Output | USB Port & Parallel port(printer) | |||||
| Power Requirement | AC 220V/50Hz or AC110V/60Hz | |||||
| Dimension | 470×370×180mm | |||||
| Weight | 14kg | |||||
